Wireless Network Management

Monitoring the Wireless Network

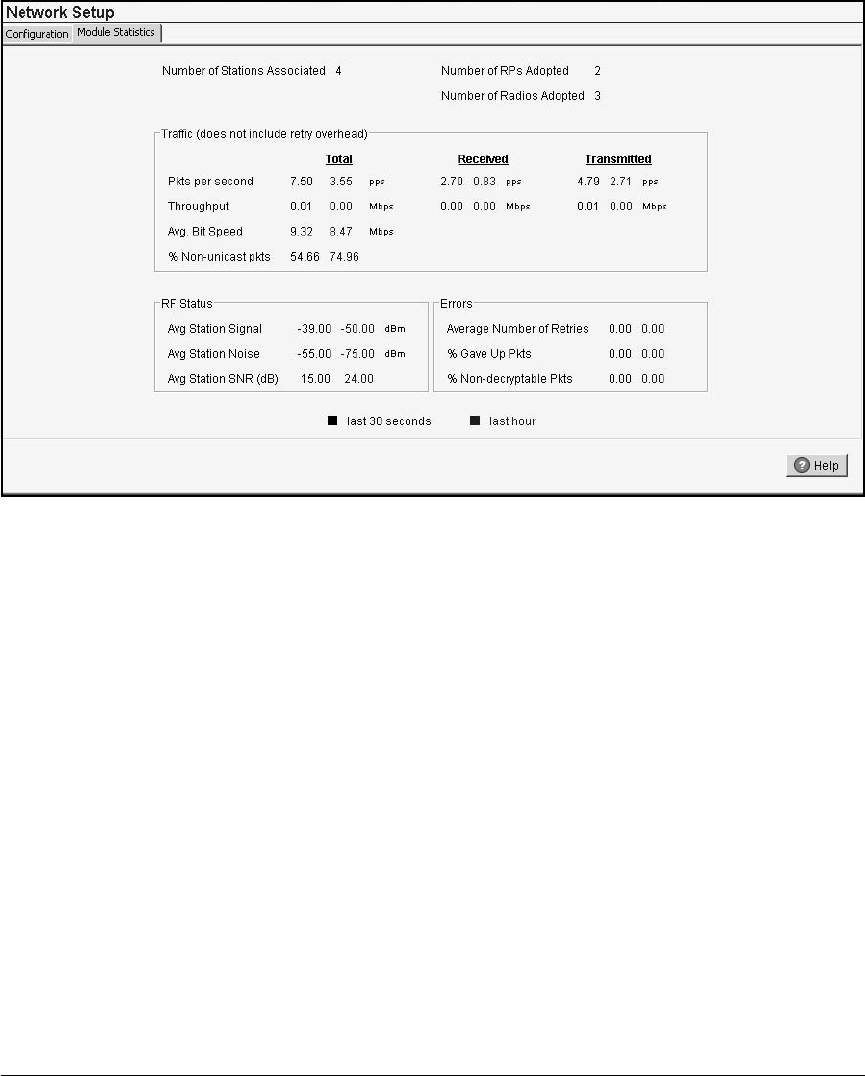

Figure 13-23.Network Setup > Module Statistics Screen

The top of the screen displays:

■ the number of stations currently associated with RPs on this module

■ the number of RPs adopted by this module

■ the number of RP radios adopted by this module

The Traffic section contains statistics similar to those discussed in “Wireless

Statistics for Stations” on page 13-12:

■ Pkts per second

■ Throughput in Mbps

■ Avg. Bit Speed in Mbps

■ % Non-unicast pkts

These statistics apply to all wireless traffic associated with this module and

are divided into statistics for the last 30 seconds (in black) and the last hour

(in blue). The Traffic section also divides statistics into traffic received and

traffic transmitted.
