Wireless Network Management

Monitoring the Wireless Network

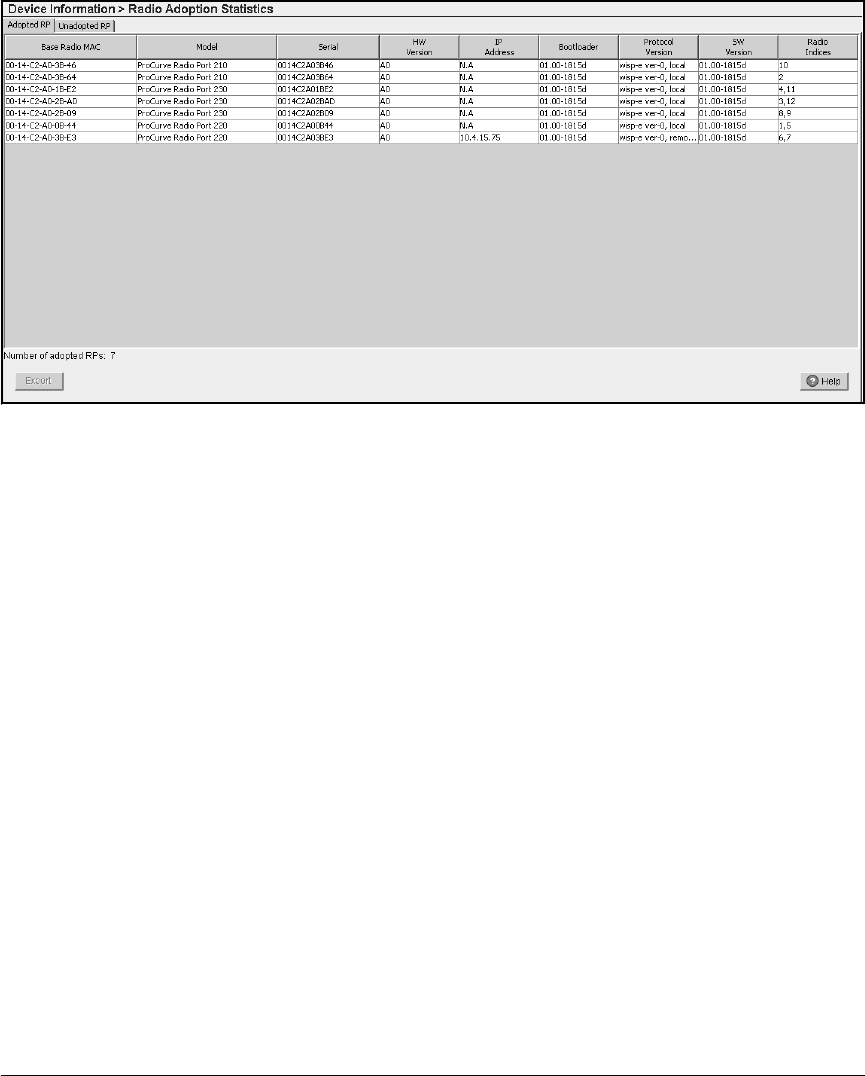

Figure 13-24.Device Information > Radio Adoption Statistics > Adopted RP Screen

Select the Adopted RP tab to view the RPs that the module has actually adopted,

and the Unadopted RP tab to view other detected RPs.

The number of RPs adopted by this module is listed at the bottom of the Device

Information > Radio Adoption Statistics > Adopted RP screen.

For each adopted RP, the screen lists:

■ Base Radio MAC—This is the MAC address on the RP’s Ethernet interface.

■ Model—The Wireless Edge Services xl Module adopts only ProCurve

Radio Ports 210, 220, or 230.

■ Serial—The serial number is unique to this device.

■ HW Version—This column indicates the hardware used by the RP.

■ IP Address—This column displays an IP address if you have configured

Layer 3 adoption for RPs. For more information about Layer 3 adoption,

see Chapter 2: Configuring the ProCurve Wireless Edge Services

xl Module.

■ Bootloader—This column indicates the software from which the RP boots.

The RP requires version 2 bootloader code for Layer 3 adoption. The RP

automatically downloads new bootloader code when it is adopted by a

module running a more recent version of the software.
