Wireless Network Management
Monitoring the Wireless Network
■ Protocol Version—RPs and the Wireless Edge Services xl Module commu-
nicate with a particular protocol. If an RP experiences problems, you
should verify that the two devices’ protocol versions match. Also check
the hardware version and the bootloader version.
■ SW Version—You should verify that the software version with which the
RP loads is up-to-date.
■ Radio Indices—The RP includes one or two radios. These radios are listed
on the Network Setup > Radio > Configuration screen according to the
indices displayed in this column. You can configure settings for these
radios on that screen. (See Chapter 3: Radio Port Configuration.)
If you have configured manual radio adoption, the module may detect RPs
that it is not authorized to adopt. These RPs are listed on the Device Information
> Radio Port Adoption Statistics > Unadopted RP screen. (See Figure 13-25.)

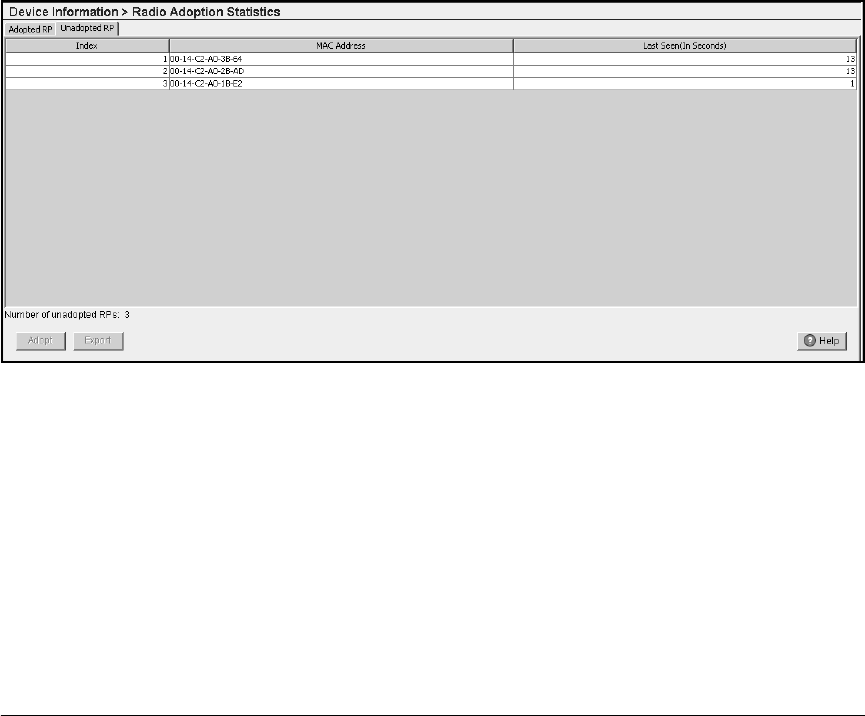

Figure 13-25.Device Information > Radio Adoption Statistics > Unadopted RP
Screen
You should review this screen to determine whether you need to manually add
an unadopted RP (see Chapter 2: Configuring the ProCurve Wireless Edge
Services xl Module) or find and remove an unauthorized RP. The screen lists
this information:
■ Index—RPs are listed in the order in which they are detected.
■ MAC Address—This is the MAC address on the RP’s Ethernet interface.
■ Last Seen (In Seconds)—View this setting to determine how recent the
information about this RP is.
