13-41

Wireless Network Management

AP Detection

Table 13-1. Comparing Single-Channel Detectors and Dedicated Detectors

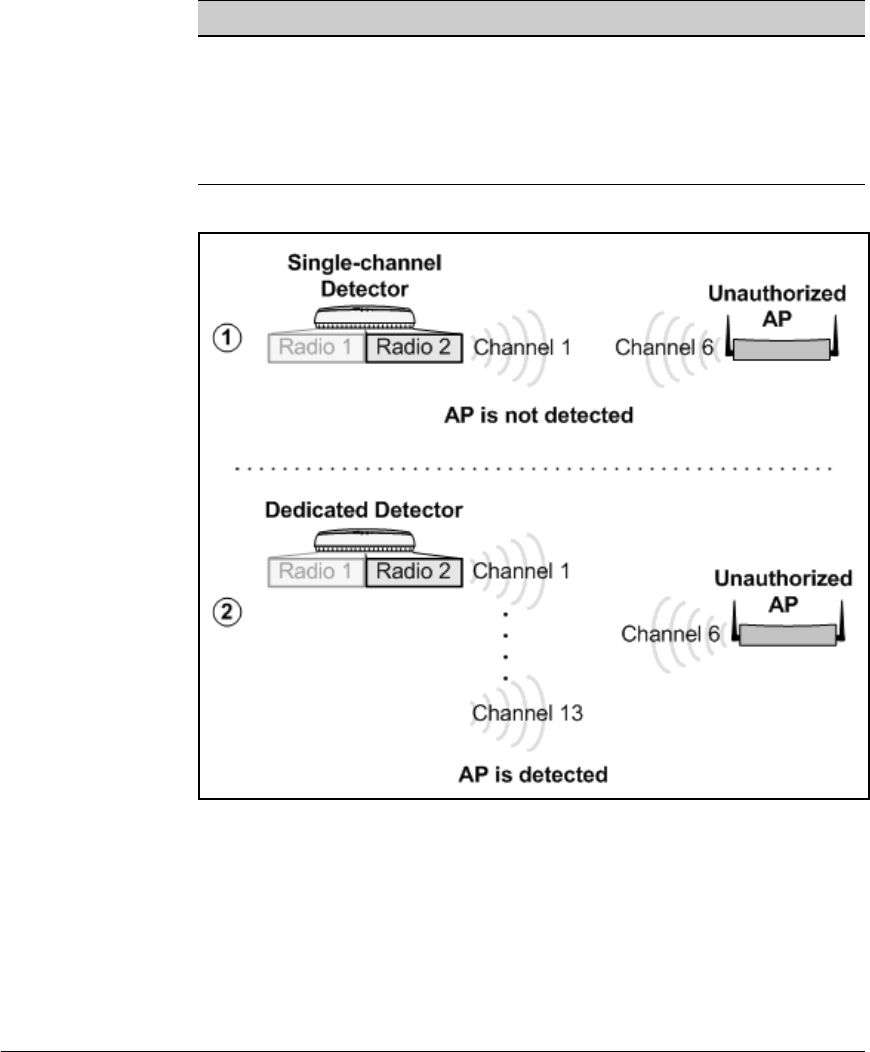

Figure 13-27.AP Detection on Single-Channel Detectors and Dedicated Detectors

Single-Channel Detector Dedicated Detector

Radio passively listens for beacons Radio actively sends probe requests

Radio listens on its own channel only Radio sends probes on all channels in its

frequency that are allowed by its country’s

regulations

Radio supports wireless stations Radio does not support wireless stations
