13-45

Wireless Network Management

AP Detection

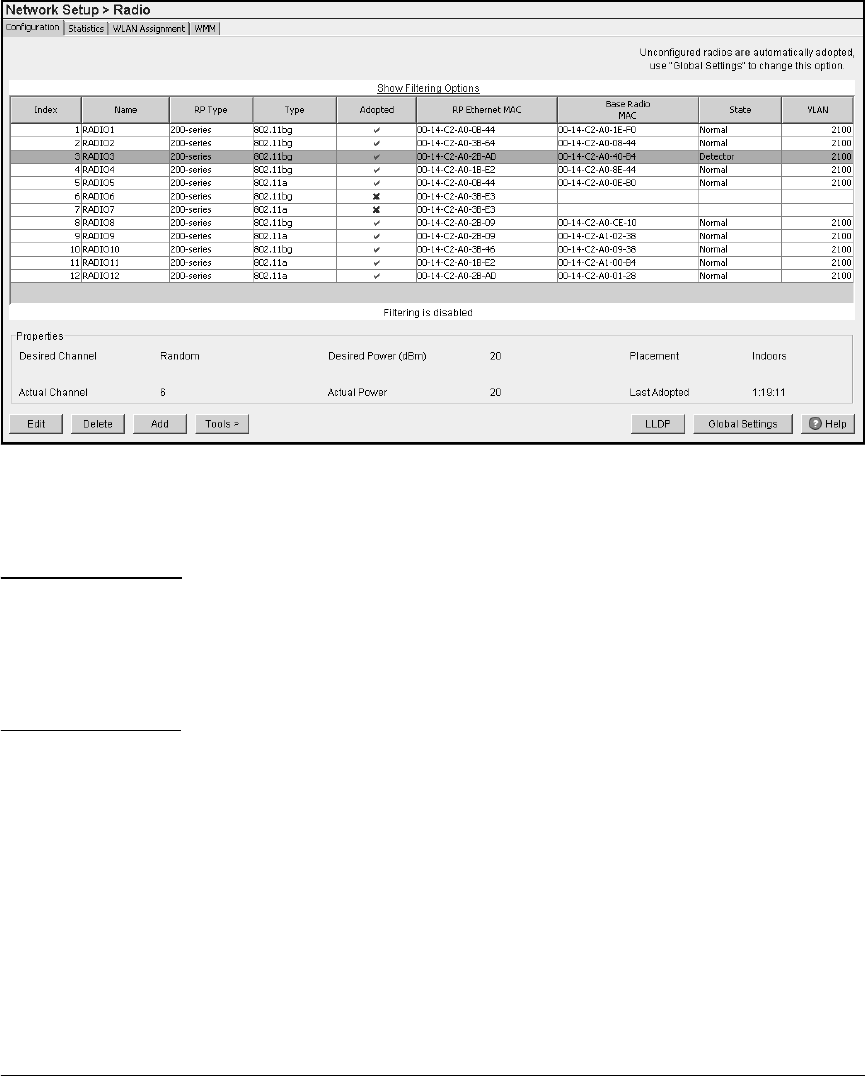

Figure 13-30.Viewing the Radio State

The radio state should now be listed as Detector on the Network Setup >

Radio > Configuration screen, as shown in Figure 13-30.

Note The Wireless Edge Services xl Module stores the configuration for a particular

radio with its MAC address so that this configuration persists even if the radio

powers down.

For more information on radio configurations, see Chapter 3: Radio Port

Configuration.

3. Configure all radios of a particular type to scan for APs.

a. Select Network Setup > Radio Adoption Defaults > Configuration.
