1-56

Introduction

Radio Ports

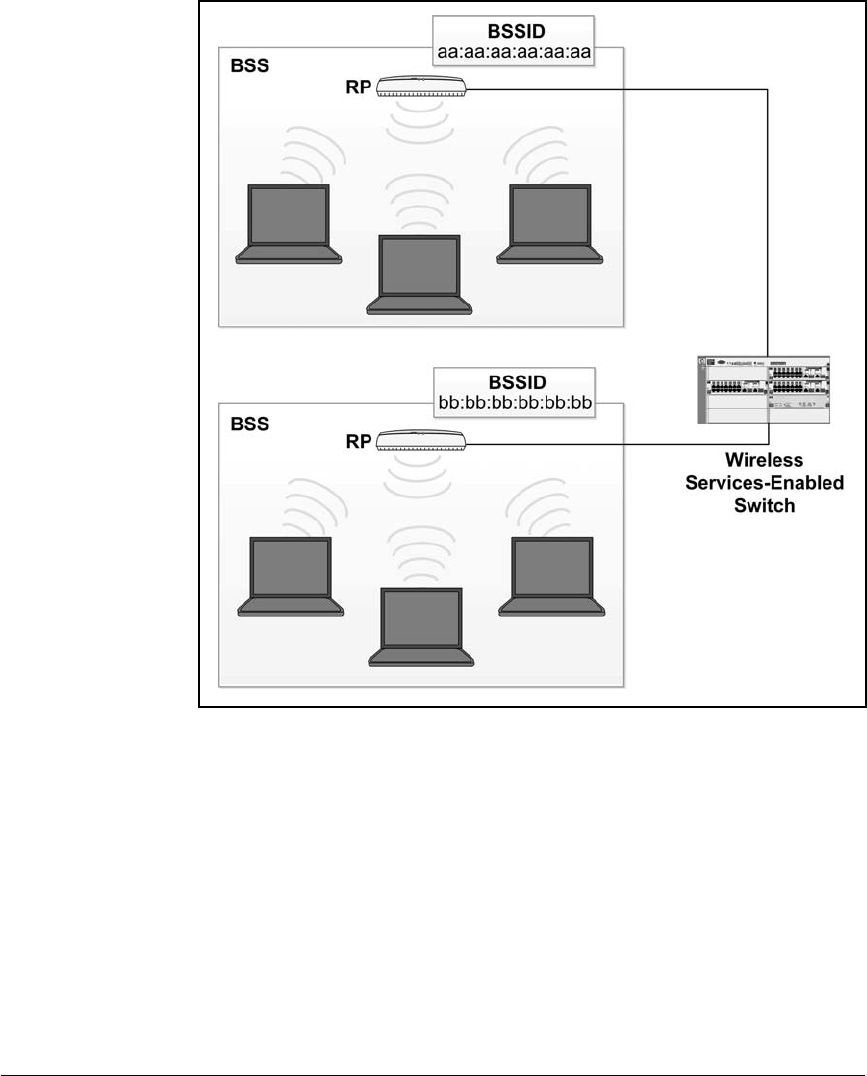

Figure 1-18. BSS

A BSS operates in infrastructure mode, which means that instead of commu-

nicating with each other, wireless stations communicate with an RP. This is

the typical mode for a wireless network used to grant mobile users access to

an Ethernet network, as well as the mode in which the ProCurve RPs operate.

(See Figure 1-19.)
