13-48

Wireless Network Management

AP Detection

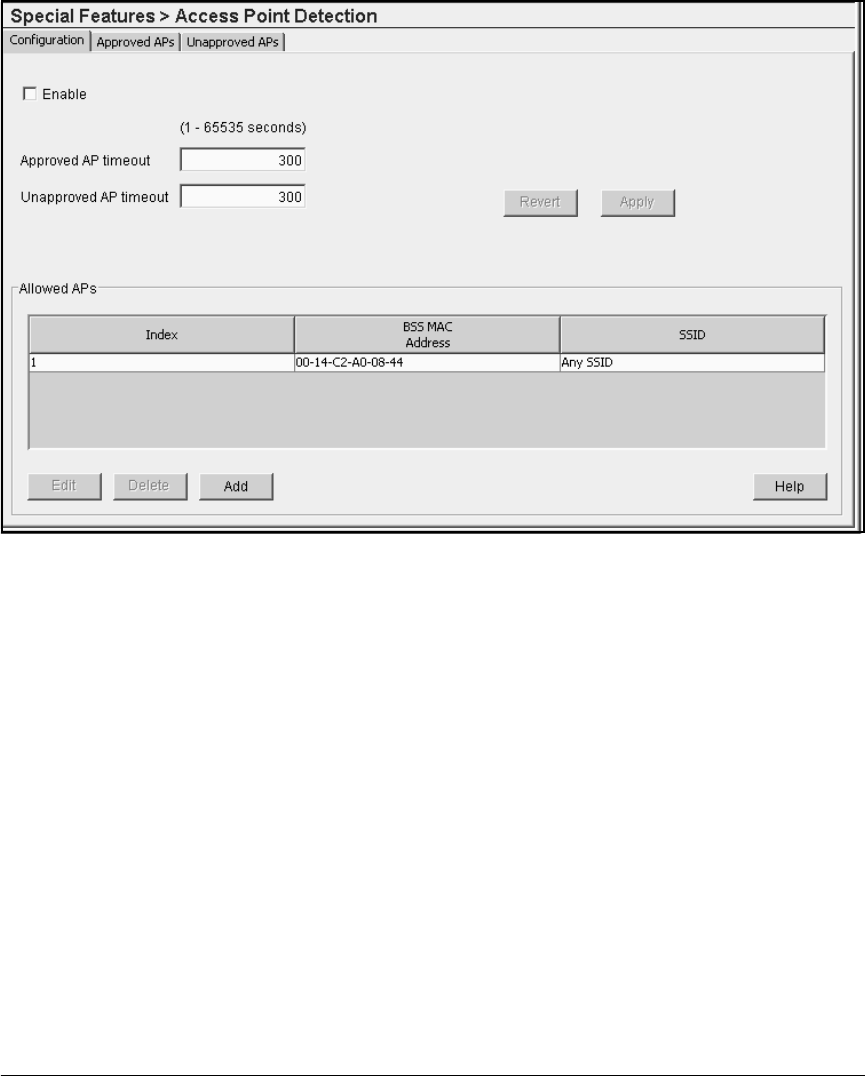

Figure 13-32.Viewing Allowed APs

2. Click the Add button.

3. In the Index field, enter a value from 1 through 200. Each rule must have

a unique index.

By default, the field displays the next available index number.

4. Create one of the three types of rules:

a. Allow an AP with a particular MAC address no matter what WLAN it

supports, as shown in Figure 13-33:

i. Select the second field under Radio MAC Address and then enter

the address.

ii. Under SSID, keep the selection at Any SSID.
