13-50

Wireless Network Management

AP Detection

c. Allow a particular AP only if it is a member of the correct WLAN, as

shown in Figure 13-35:

i. Select the Radio MAC Address field and then enter the address.

ii. Select the SSID field and then enter the WLAN’s SSID.

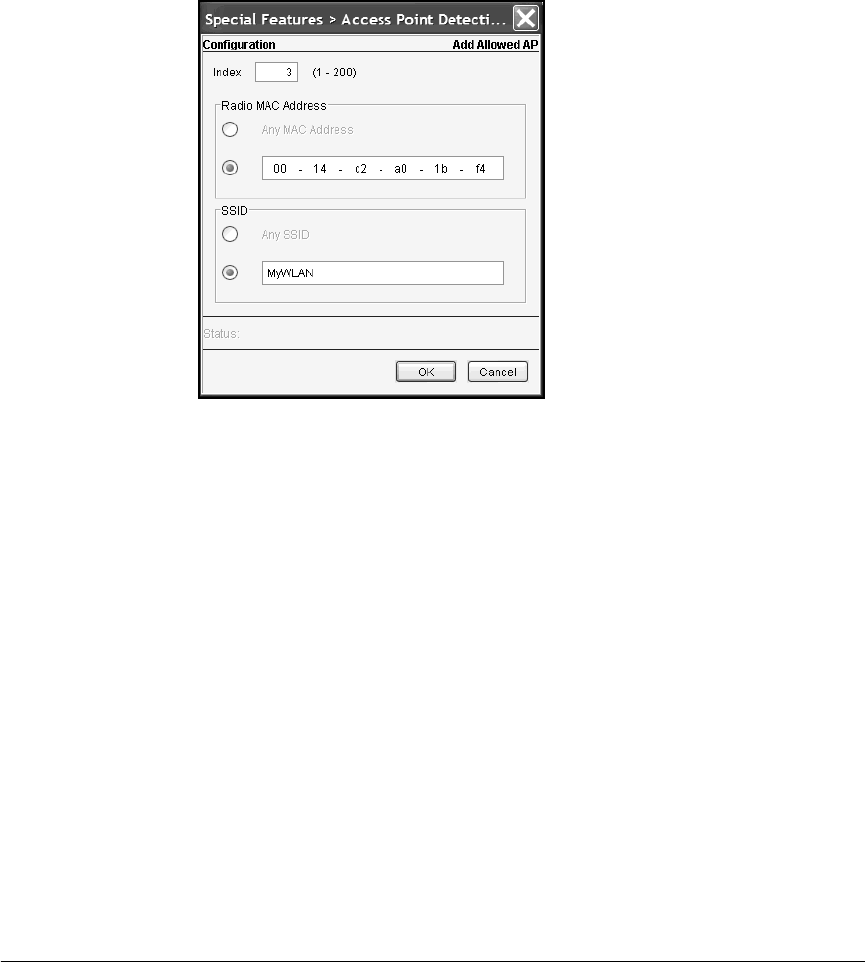

Figure 13-35.Allowing a Particular AP in a Particular WLAN

5. Click the OK button.

The AP is now listed in the Allowed APs section of the Special Features > Access

Point Detection > Configuration screen.

Monitoring Detected APs

You should periodically check the unapproved APs list for rogue APs. You may

also want to configure the Wireless Edge Services xl Module to automatically

generate and send an alarm whenever a radio detects an unapproved AP.

Managing the Unapproved APs List

Select Special Features > Access Point Detection and click the Unapproved APs

tab to view a list of detected APs not expected in your environment. (In other

words, this list displays any APs that the rules do not allow.)
