13-51

Wireless Network Management

AP Detection

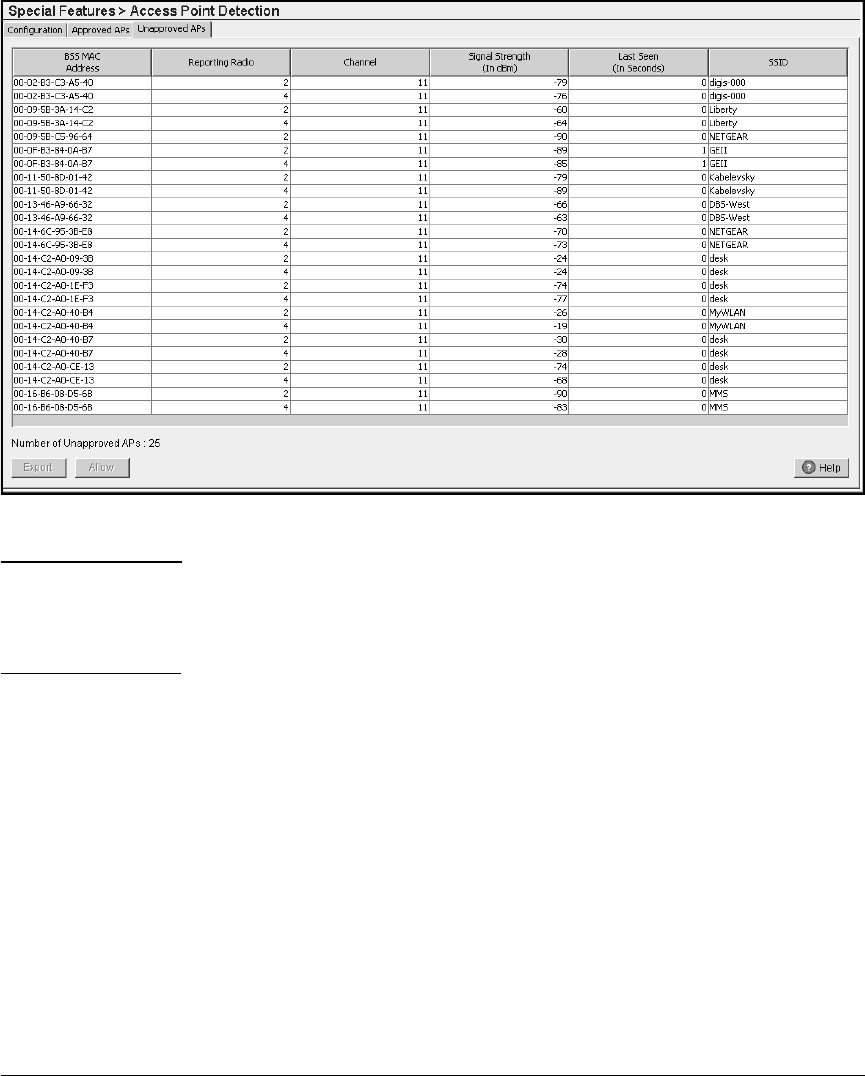

Figure 13-36.Viewing the Unapproved APs List

Note You can also view this list by selecting Device Information > Access Point

Detection and clicking the Unapproved APs tab. However, you can only view

information about APs on the other screen; you cannot allow the APs as

described below.

As shown in Figure 13-36, the list includes the following information for

each AP:

■ BSS MAC Address—This address is the AP’s BSSID. RPs report each BSSID

that is a source of a beacon as a detected AP. Because an AP might send

beacons using several different BSSIDs, RPs might report the same phys-

ical AP several times.

■ Reporting Radio—This is the index for the adopted radio that detected this

AP. This information can help you pinpoint a rogue AP’s location.

■ Channel—This is the channel on which the detected AP operates.

■ Signal Strength (In dBm)—This field lists the detected AP’s signal strength,

expressed in dBm. This information can help you determine how close

the AP is to the reporting radio.
