13-54

Wireless Network Management

AP Detection

If a rogue AP is on this list, you should reconfigure the rule that allowed it.

For example, to screen APs you may need to use MAC addresses instead of,

or in addition to, SSIDs.

Configuring the Module to Report Unapproved APs

You can configure the Wireless Edge Services xl Module to trigger a Simple

Network Management Protocol (SNMP) trap whenever a radio detects an

unapproved AP.

Complete these steps:

1. Select Management > SNMP Trap Configuration > Configuration.

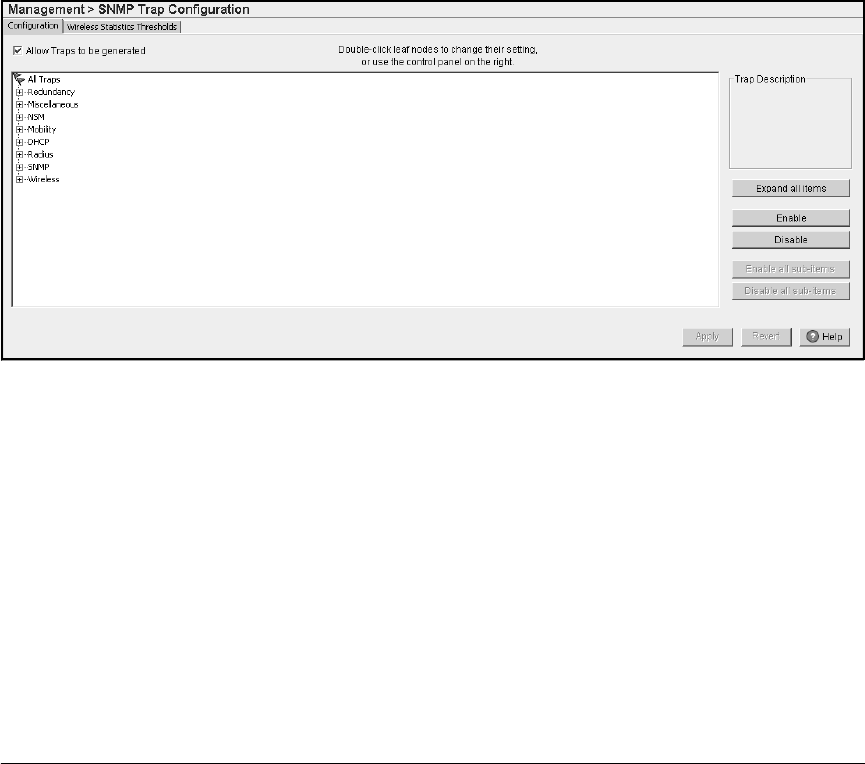

Figure 13-39.Management > SNMP Trap Configuration > Configuration Screen

2. Expand the Wireless heading and then the RP Detection heading.

3. Click the Enable all sub-items button.

4. Make sure that the Allow Traps to be generated box is checked.
