13-56

Wireless Network Management

AP Detection

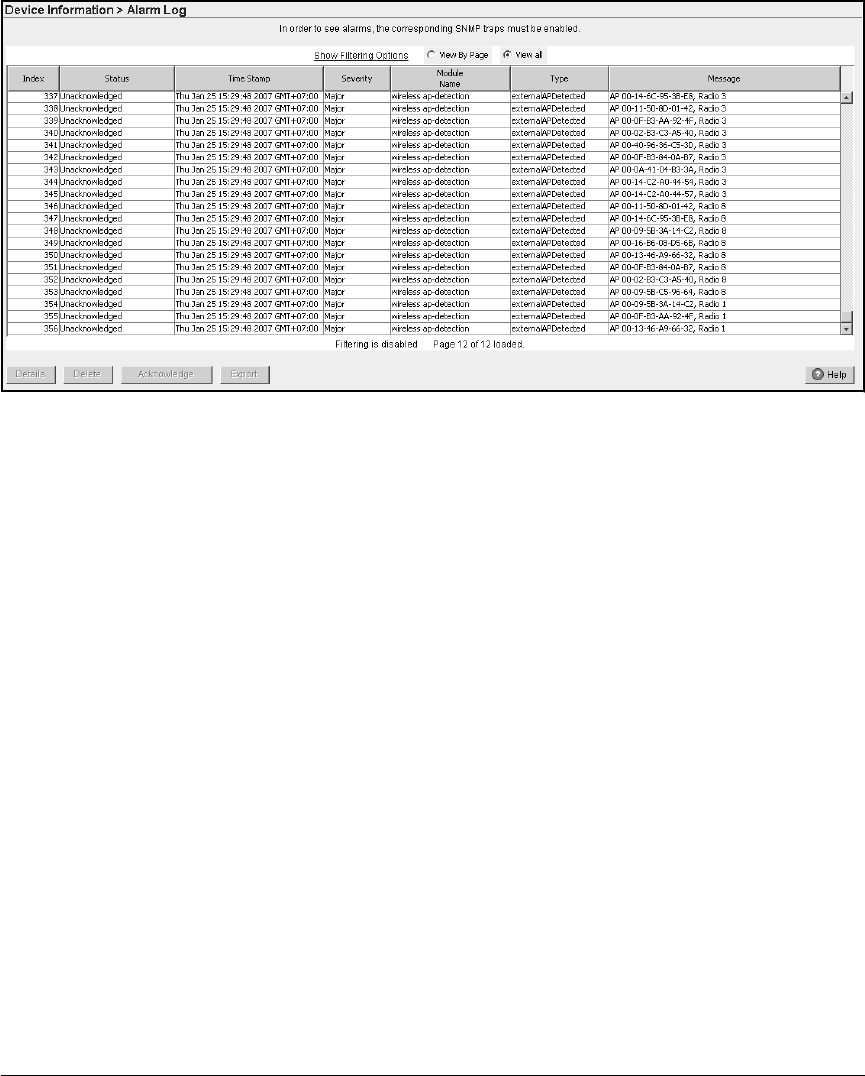

Figure 13-41.Receiving an Alarm about an External AP

The module will log the alarm, as well as forward it to a trap receiver (if one

has been specified). (For instructions on configuring the trap receiver, see

Chapter 2: Configuring the ProCurve Wireless Edge Services xl Module.)
