13-60

Wireless Network Management

Configuring Station Intrusion Detection

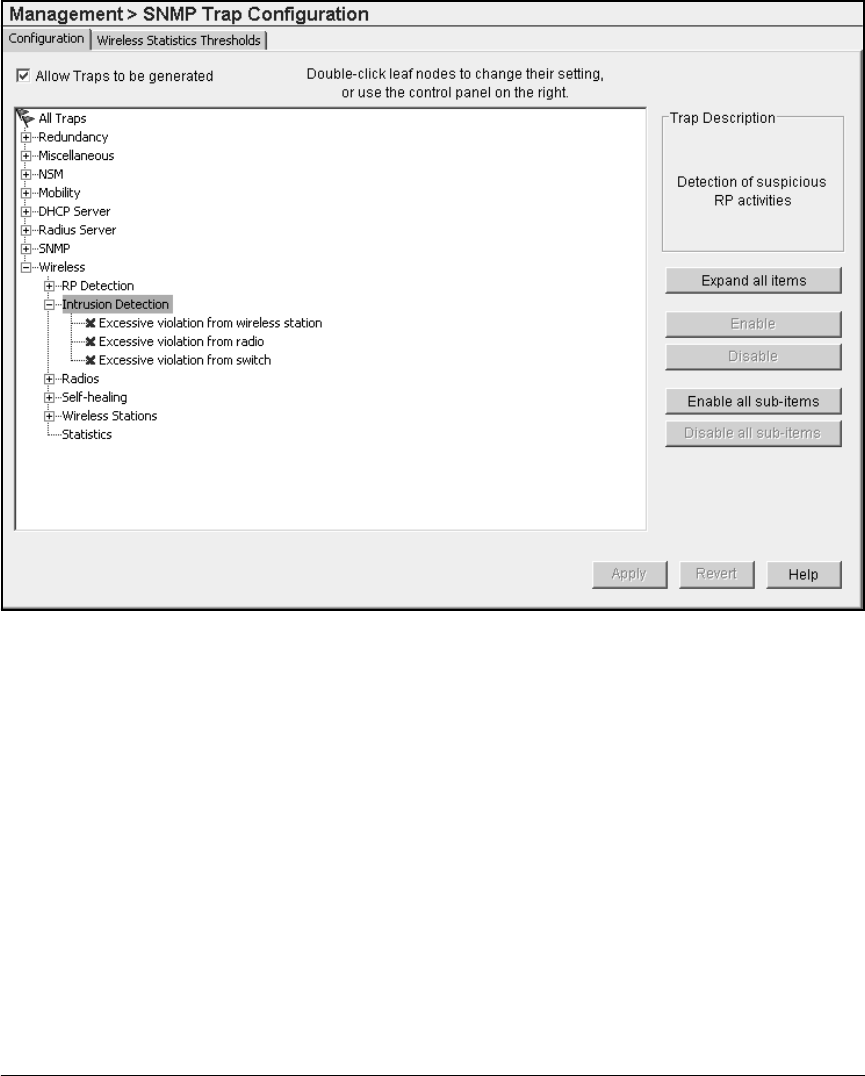

Figure 13-43.Enabling Intrusion Detection Traps

3. Select Intrusion Detection and click the Enable all sub-items button. (Alter-

natively, select one of the sub-items and click the Enable button.)

4. Make sure that the Allow Traps to be generated box is checked.

5. Click the Apply button.

The module will log the alarm, as well as forward it to a trap receiver (if one

has been specified). (For instructions on configuring the trap receiver, see

Chapter 2: Configuring the ProCurve Wireless Edge Services xl Module.)
