Wireless/Redundant Edge Services xl Module Management and Configuration Guide WS.02.xx and greater

13-65
Wireless Network Management
Logging and Alarms

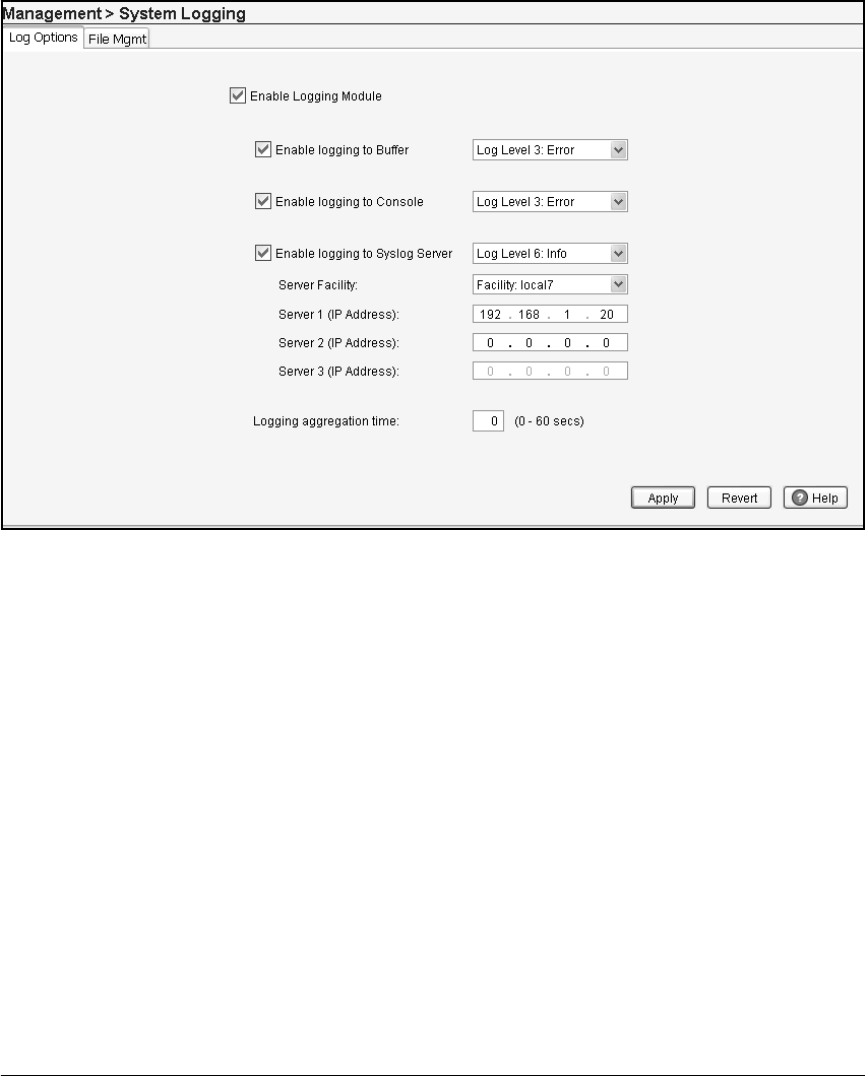

Figure 13-46.Forwarding Logs to an External Syslog Server
2. Check the Enable logging to Syslog Server box.
3. From the corresponding drop-down menu, select the lowest severity for
logs that the module will forward. The default level is level 6, Info.
4. In the Server Facility field, use the drop-down menu to select the facility
that your syslog server uses to receive such logs. Local7 is typically
reserved for network devices.
5. In one of the Server fields, enter the server’s IP address. You can specify
up to three syslog servers.
6. Click the Apply button.
Viewing Events in the Local Log File
To view the events that the Wireless Edge Services xl Module has stored in its
own log file, select Management > System Logging and click the File Mgmt tab.
