13-67

Wireless Network Management

Logging and Alarms

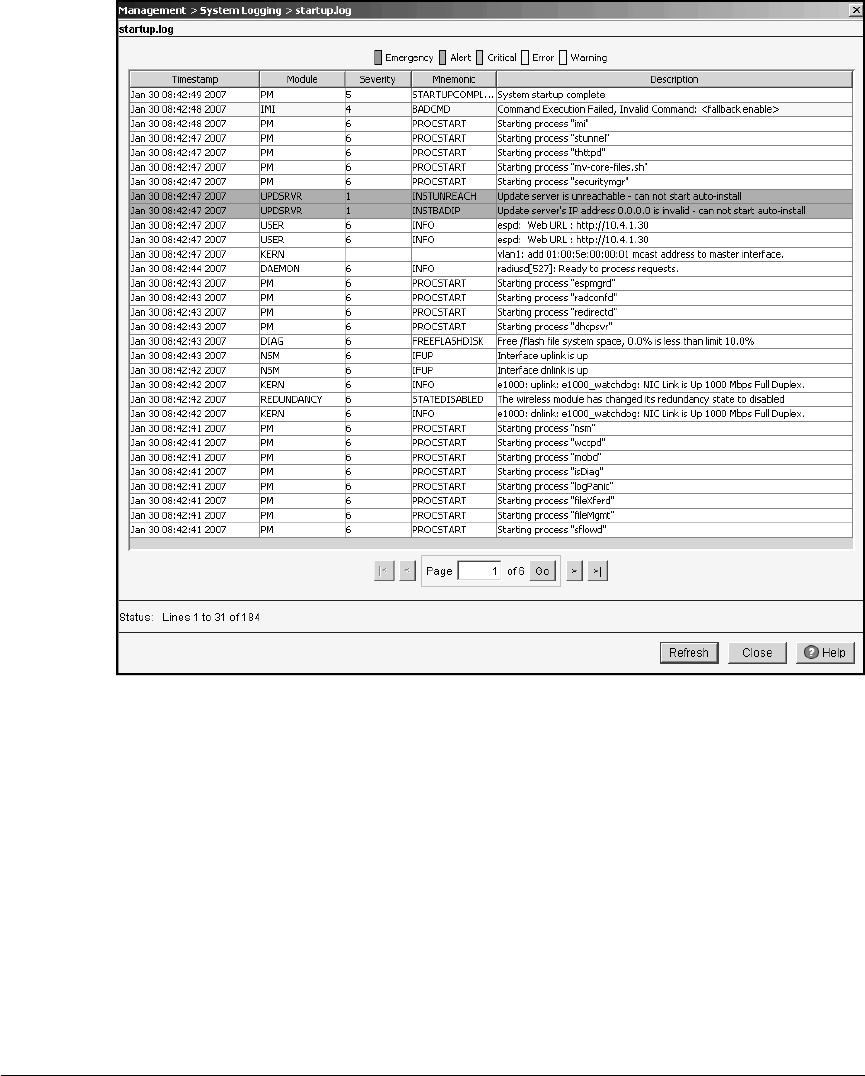

Figure 13-48.Viewing Logged Events

The most recent events are listed at the top of the screen. The color code helps

you to quickly identify the most important events (that is, those with the

lowest level, or greatest severity).

For each event, the log reports:

■ Time stamp—Remember to look at the time stamp to make sure that you

are not examining obsolete logs. (Quickly checking the time stamp when

you preview the log file can also save you time.)

■ Module—The module indicates which part of the system has reported this

event. (Different modules report different types of activity.)

■ Severity—It is often important to focus quickly on the most severe events,

which, as mentioned above, the color code helps you to do.
