Wireless Network Management
Logging and Alarms
To transfer the local log file, complete these steps:
1. Click the Transfer Files button. The Transfer screen is displayed.

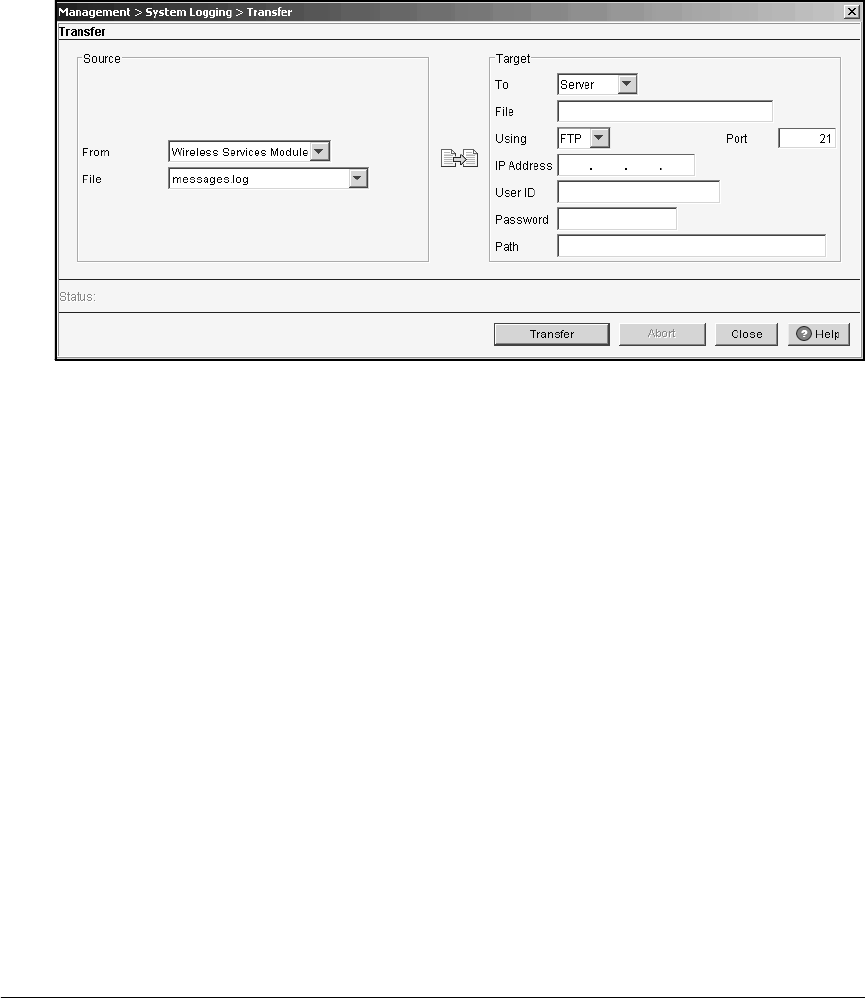

Figure 13-49.Transferring Log Files to a Server or Workstation
2. In the From field in the Source section, use the drop-down menu to select
Wireless Services Module. In the File field, use the drop-down menu to
select the log file that you want to transfer.
3. Select the destination for the file. You can save the log to your workstation
or to a remote server:
a. To save the log to your workstation, in the To field, use the drop-down
menu to select Local Disk.
You can then enter the filename in the File field and click the Browse
button to select the destination for the file.
b. To save the log to a remote server, in the To field, use the drop-down
menu to select Server. Then enter this information in the fields below:
– File—Name the file on the remote server. (This name can be
different from that of the source file.)
– Using—Use the drop-down menu to select the type of server. You
can use a TFTP or an FTP server.
– IP Address—Specify the server’s IP address.
– User ID and Password—FTP servers may require you to enter the
correct username and password.
