13-76

Wireless Network Management

MAC Filters (Local MAC Authentication)

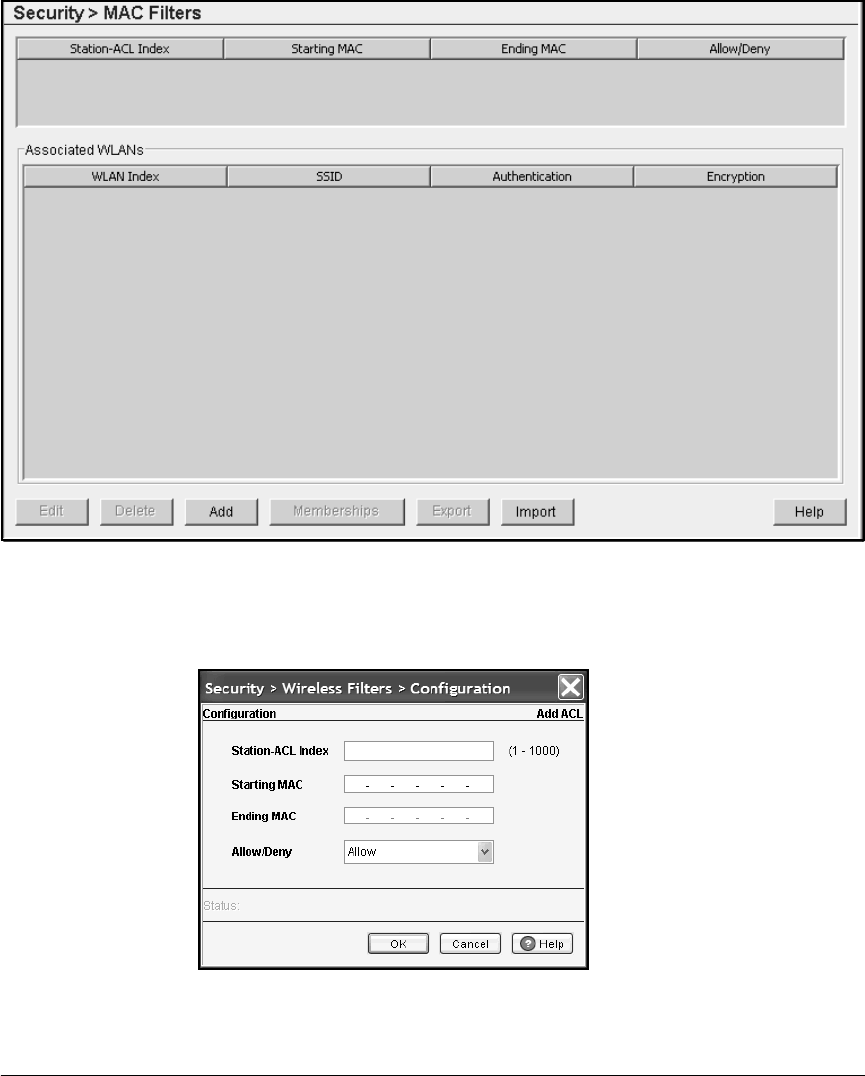

Figure 13-53.Security > MAC Filters Screen

2. Click the Add button. The Add ACL screen is displayed.

Figure 13-54.Add ACL Screen
