13-78

Wireless Network Management

MAC Filters (Local MAC Authentication)

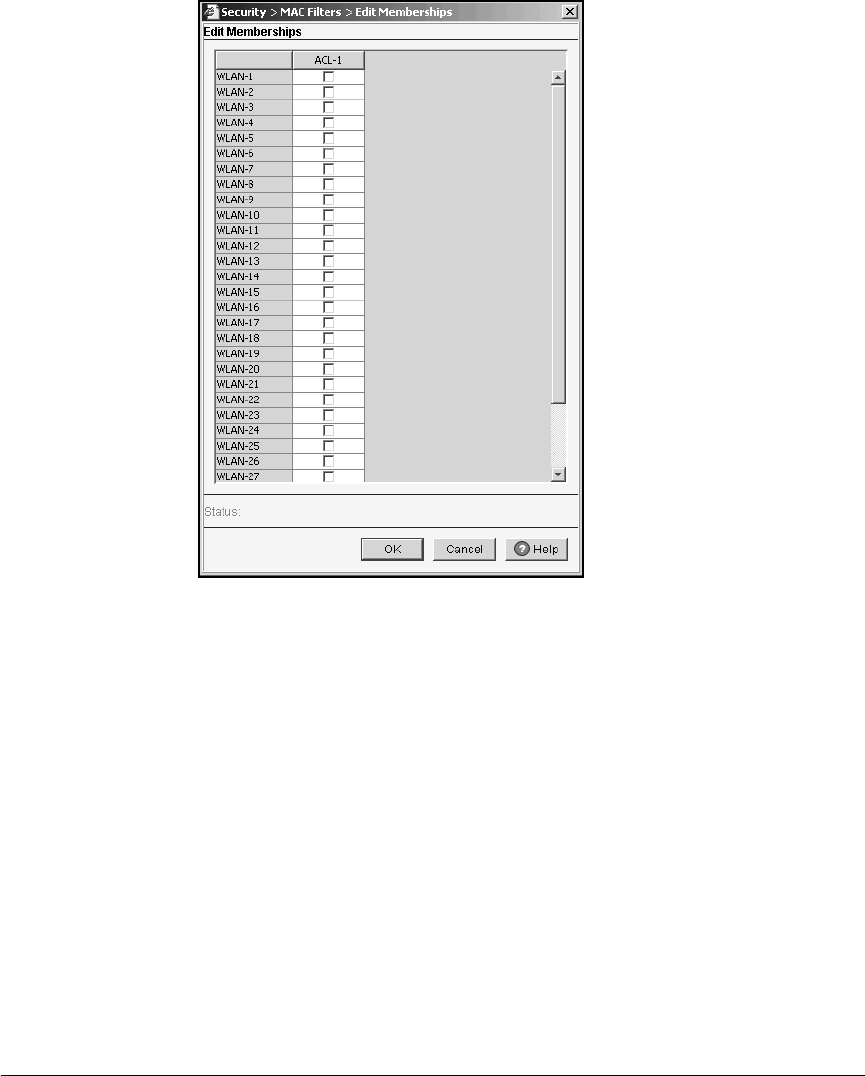

Figure 13-55.Assigning ACLs to WLANs

3. Check the boxes for the WLANs to which you want to apply the ACL.

WLANs are displayed by index (not SSID). The module will use the ACL

to filter traffic on the selected WLANs.

If you have selected multiple ACLs, they are listed in separate columns by

index number. (See Figure 13-56.)
