13-80

Wireless Network Management

MAC Filters (Local MAC Authentication)

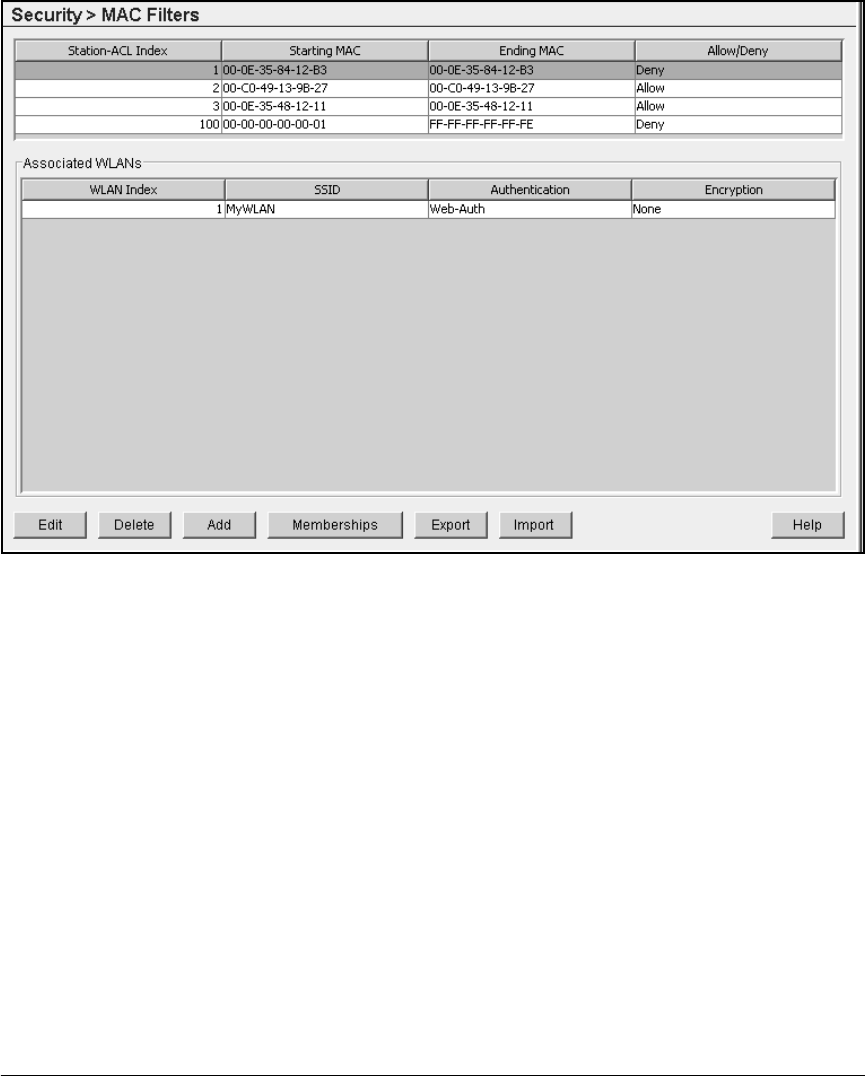

Figure 13-57.Associating ACLs with WLANs

Note that it is possible to prevent a station from associating to one WLAN but

to allow the station to associate to another.

Just as you can make an ACL a member of more than one WLAN, you can

associate more than one ACL to a WLAN. The module filters traffic first against

the ACL with the lowest index number, then against the ACL with the next

lowest number, and so on. Parsing stops with the first successful match to an

ACL.

In Figure 13-57, network administrators have created four ACLs. The first

ACL denies a single station, the second and third ACLs allow stations, and

the fourth ACL denies all stations. The network administrators made all these

ACLs members of the WLAN called MyWLAN.

With this configuration, only the stations allowed by ACLs 2 and 3 can con-

nect to MyWLAN. Notice that the network administrators have numbered the

ACL that denies all stations as 100. They can add ACLs to allow other stations,
