13-82

Wireless Network Management

MAC Filters (Local MAC Authentication)

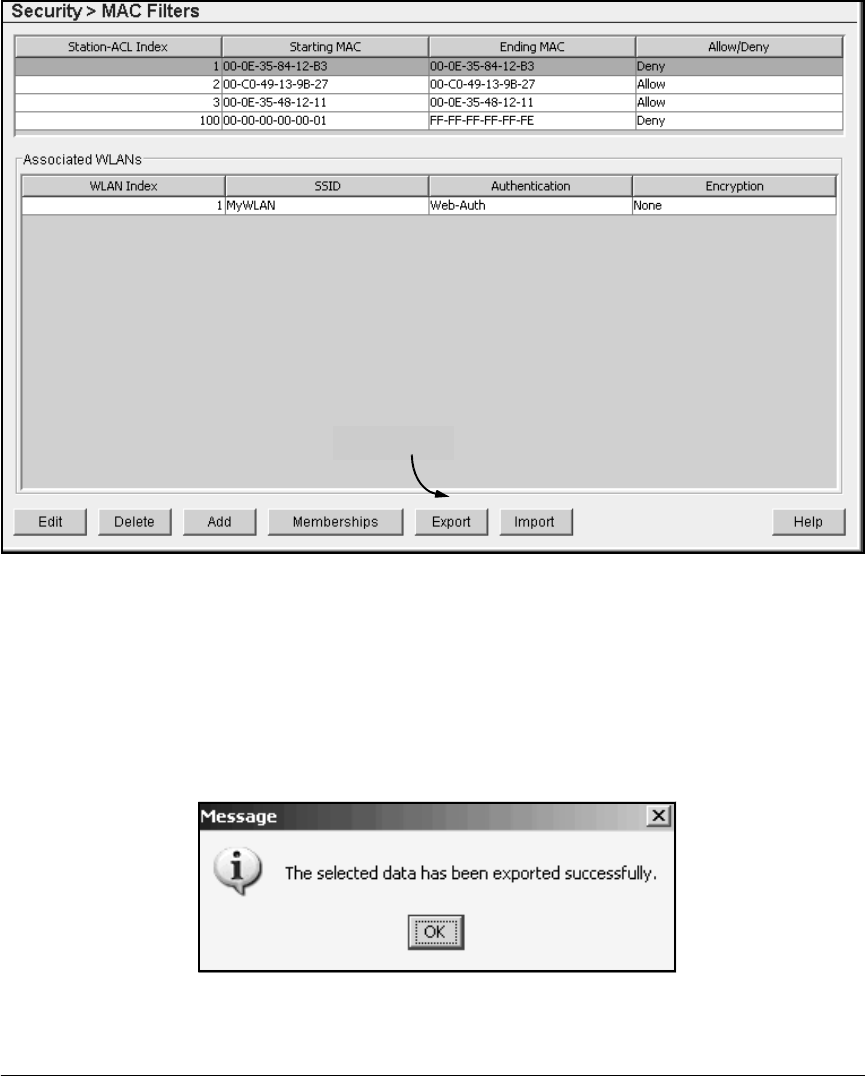

Figure 13-58.Exporting ACLs

3. Click the Export button.

4. A dialog screen is displayed for saving the file to the local disk of your

management station. Name the file and choose the directory in which to

save it. Then confirm the save.

5. A screen reports that the export was successful. Click the OK button.

Figure 13-59.Export Success Message

Export button
