13-85

Wireless Network Management

MAC Filters (Local MAC Authentication)

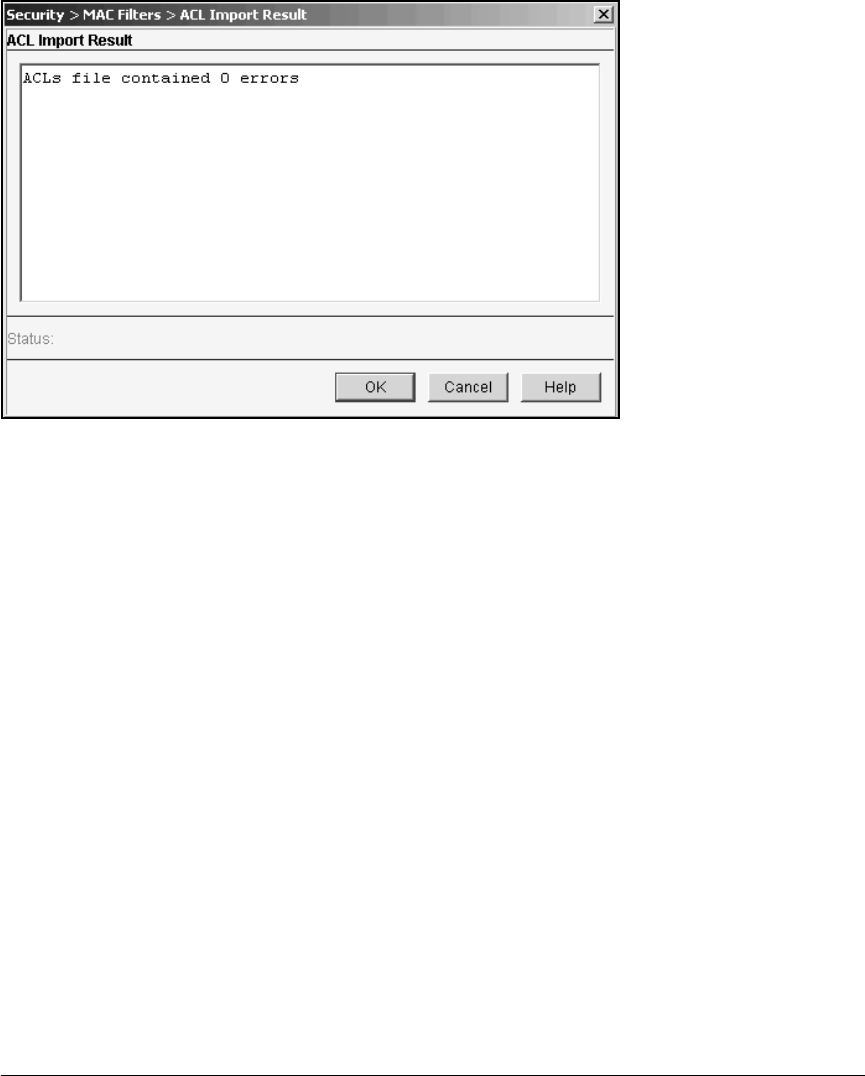

Figure 13-61.ACL Import Result

5. Click the OK button.

6. For the imported ACLs to take effect, you must assign them WLAN

memberships:

a. Select the new ACLs. You can select multiple ACLs by holding down

Ctrl as you select them.

b. Click the Memberships button.

c. Check boxes to assign the ACLs to WLANs.

d. Click the OK button.

See “Configuring WLAN Memberships” on page 13-77 for more

information.

Resolving Import Errors. When you attempt to import ACLs, the ACL

Import Result screen may display one or more errors.

The errors are listed by the line in the .cvs file at which the error occurs.
