13-86
Wireless Network Management
MAC Filters (Local MAC Authentication)

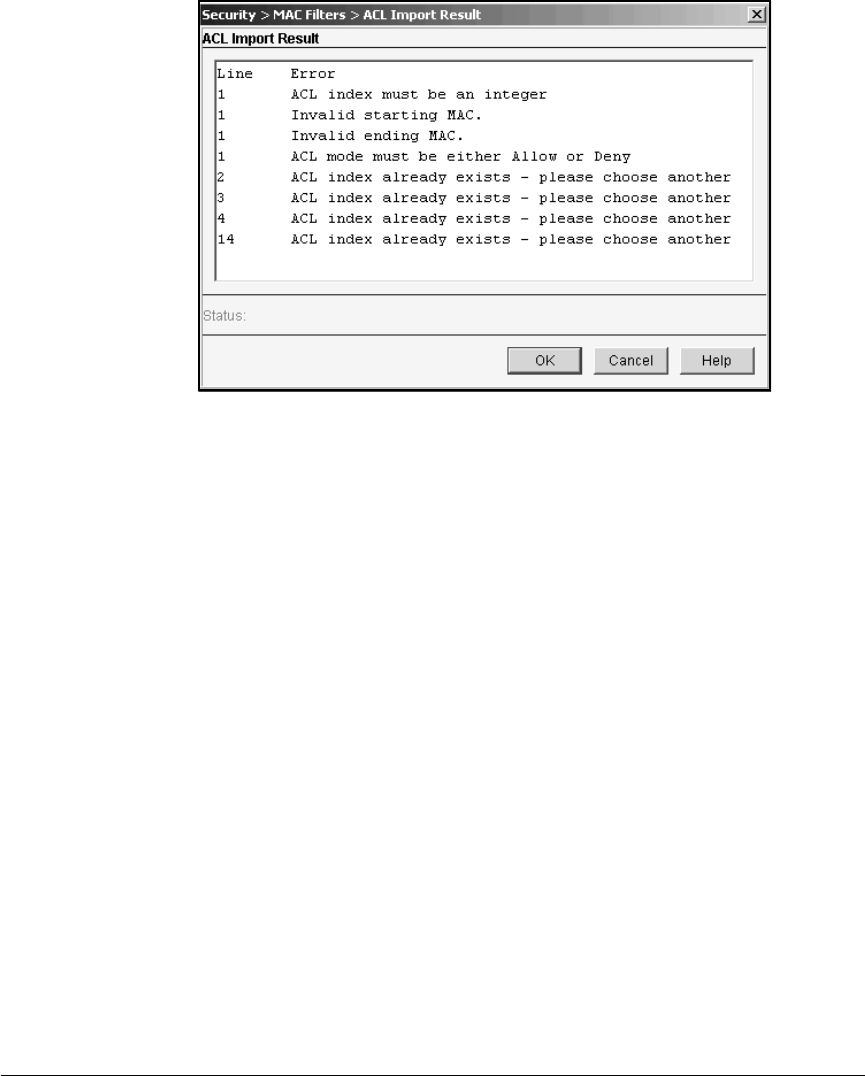

Figure 13-62.ACL Import Result Screen Error Messages
Errors include:
■ messages informing you that a field contains an invalid value:
• “ACL index must be an integer”
• “Invalid starting MAC.”
• “Invalid ending MAC.”
• “ACL mode must be either Allow or Deny”
As explained earlier, each line in the file must include four fields with valid
values for index number, MAC addresses, and ACL mode (allow or deny).
The screen in Figure 13-62 displays four such errors—all in line 1. In this
case, the imported file is a file exported from another module. Exported
files use the first line to list the names of columns rather than to specify
an ACL. You can ignore the errors. Click OK, and the ACLs are imported
to the module.
If the line indicated should specify an actual ACL, click the Cancel button.
Open the file, find the line with the error, and make the correction. See
Table 13-4 on page 13-83 for help in specifying correct values.
Then re-import the file, as described in “Importing MAC Standard ACLs”
on page 13-83.
■ “ACL index already exists - please choose another”
