13-92

Wireless Network Management

Network Self Healing

All RP radios adopted by this module are listed.

The screen lists all RP radios adopted by this module, displaying this

information for each:

• Radio Index—index number

• Description—name

• Typ e—802.11bg or 802.11a

• RP Ethernet MAC—Ethernet MAC address for the RP that includes this

radio

• Action—self-healing action when a neighbor fails

• Neighbor Radio Indices—neighbors’ index numbers

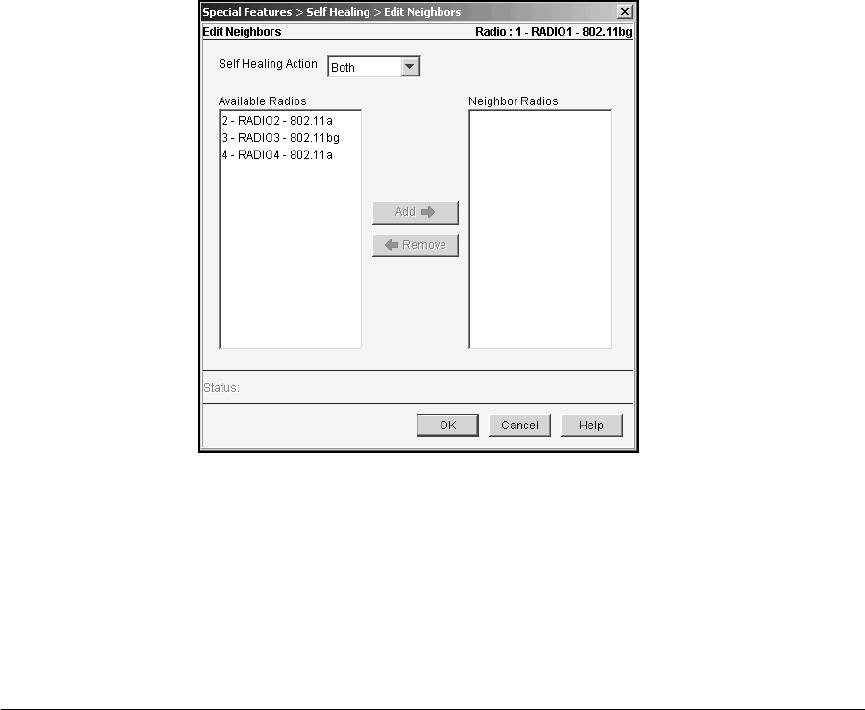

2. Select a radio and click the Edit button. The Edit Neighbor screen is

displayed. (See Figure 13-66.)

Figure 13-66.Specifying Neighbors

The available RP radios—those adopted by this module—are listed on the

left under Available Radios: these are potential neighbors.
