13-96

Wireless Network Management

Network Self Healing

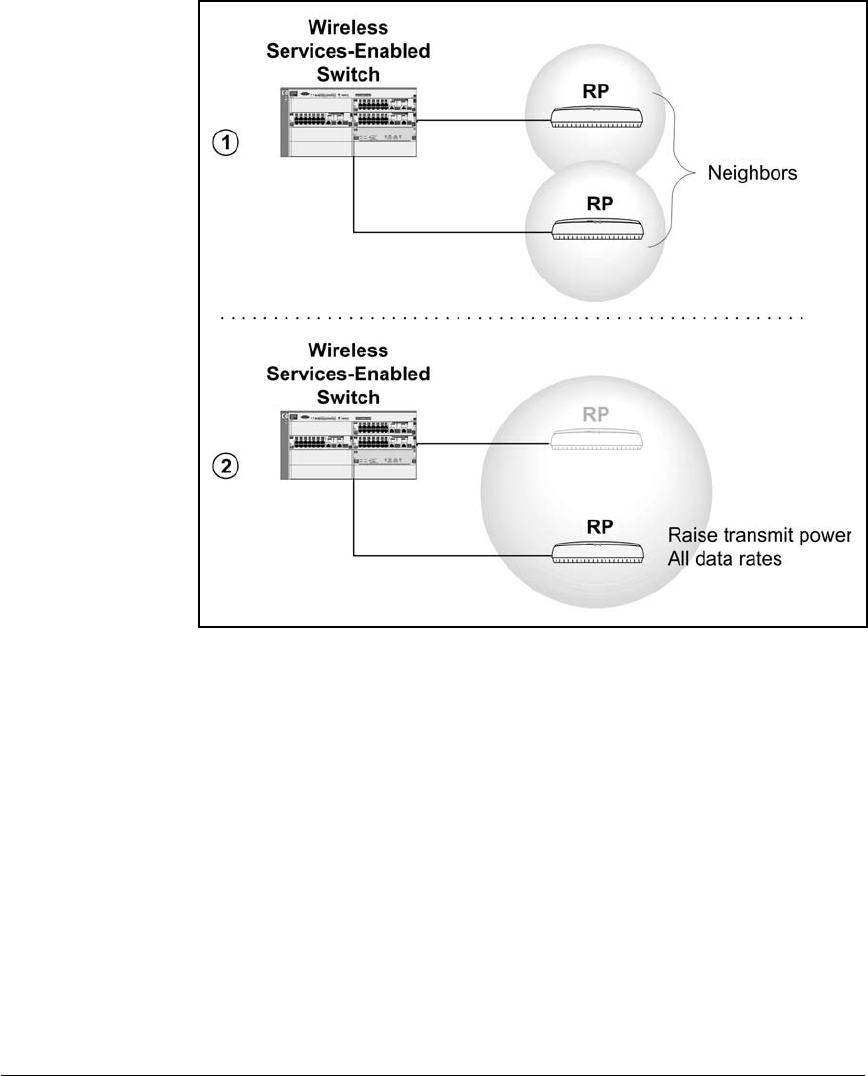

Figure 13-69.Self Healing Action for Neighbor Recovery

■ both raise its transmit power and open its data rates (see Figure 13-69)

Sometimes you lower radios’ transmit power so that closely grouped RPs

can support higher data rates within their relatively small coverage areas.

When an RP radio raises its transmit power to take over a failed neighbor’s

coverage area, it can no longer support high data rates for all stations

(some are too far away). In this case, you should remember to configure

the radio to open its data rates as well as raise its power. (This is the default

action.)
