13-98

Wireless Network Management

Network Self Healing

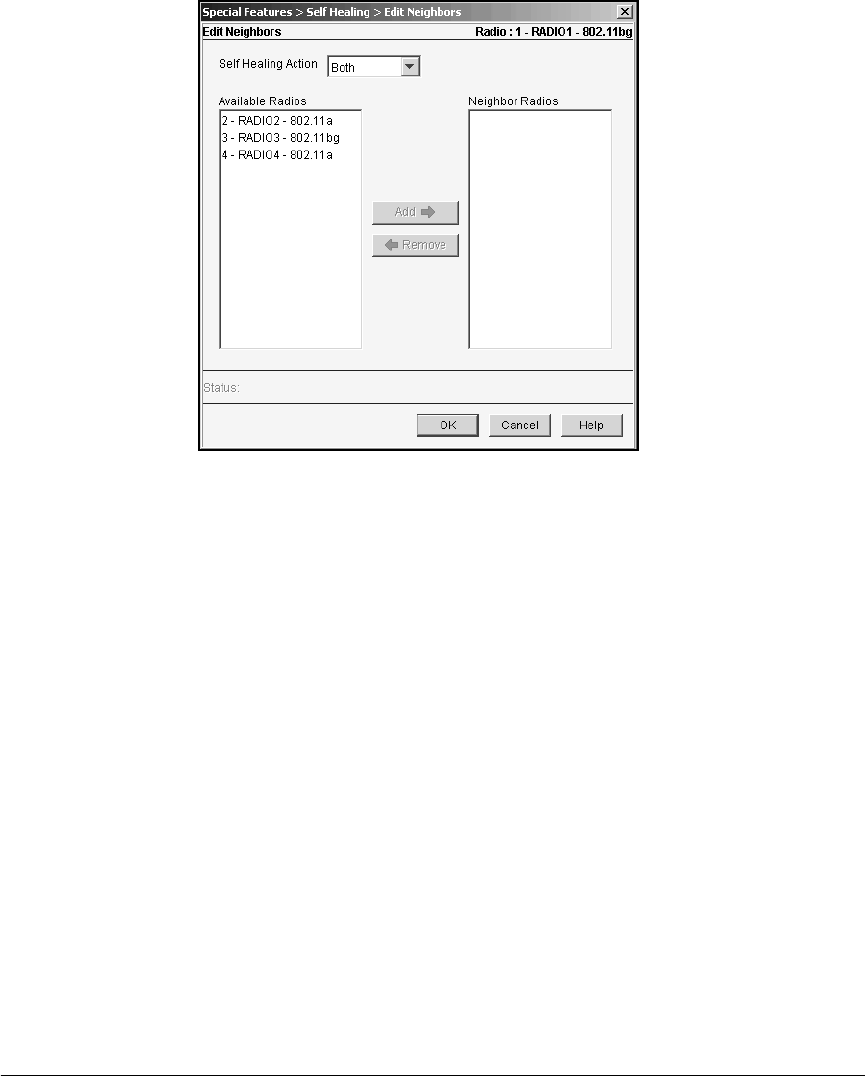

Figure 13-70.Defining the Action

3. In the Self Healing Action field, use the drop-down menu to select the

action:

• Open Rates—to configure the radio to support all data rates

• Raise Power—to configure the radio to raise its power to the legal

maximum. See “Configuring a Self Healing Offset” on page 13-98 to

determine whether you will need to configure a self healing offset.

• Both—to configure the radio to take both of these actions. This is the

default setting.

• None—to configure the radio to take neither of these actions.

4. Click the OK button.

Configuring a Self Healing Offset

When you configure a radio to raise its transmit power as part of neighbor

recovery, you must configure a self healing offset for that radio if it meets

either of these criteria:

■ It uses an external antenna.

■ It is located close to another RP radio.
