14-7

sFlow Agent

Configuring sFlow Using the Web Browser Interface

Configuring sFlow Using the Web

Browser Interface

The Wireless Edge Services xl Module’s sFlow agent is enabled by default. If

your sFlow receiver (sometimes called an sFlow collector) can control the

agent through SNMP, you do not need to configure the module further.

You can check the module’s sFlow agent and verify that it is compatible with

your sFlow receiver’s SNMP capabilities. Select Special Features > sFlow >

Agent.

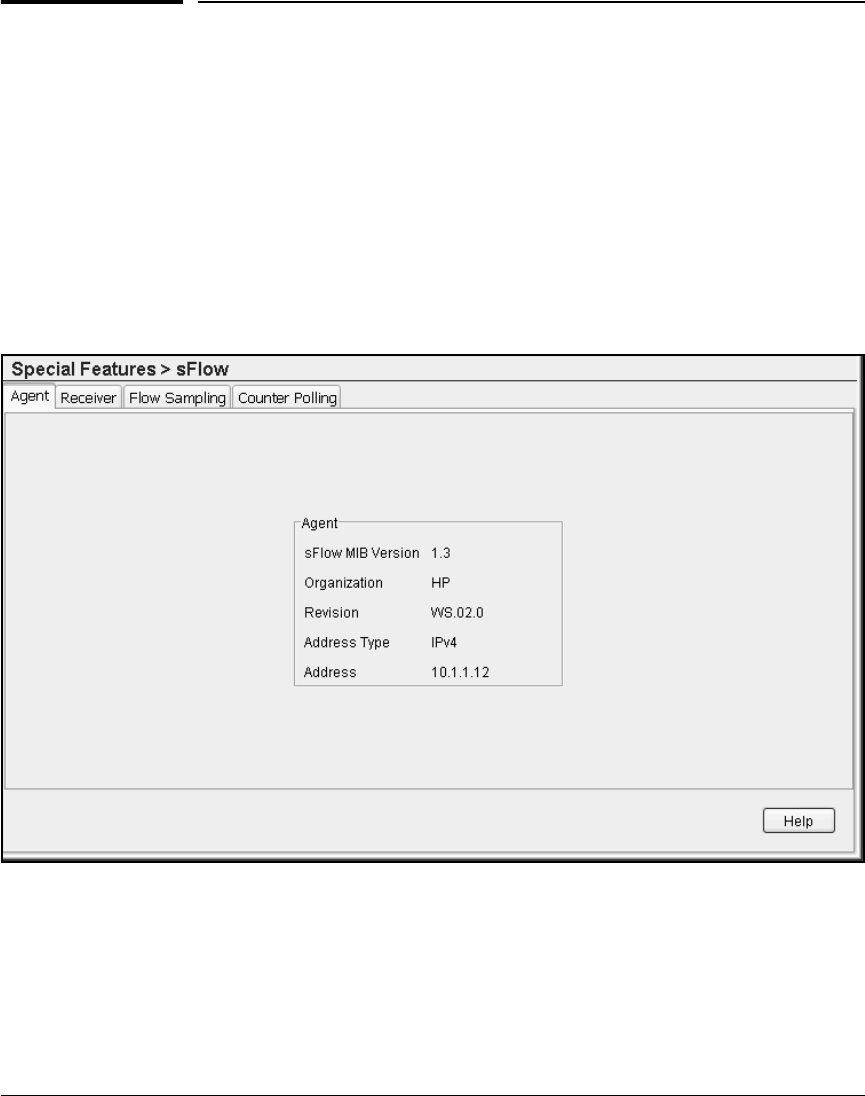

Figure 14-1. Special Features > sFlow > Agent Screen
