14-9

sFlow Agent

Configuring sFlow Using the Web Browser Interface

Each receiver has its own receiver instance. Many receivers can configure the

instance automatically. If you decide to configure instances manually, you can

configure three receiver instances (1, 2, and 3) only through the CLI. (See

Appendix A: ProCurve Wireless Services xl Module Command Line Refer-

ence.) The other receiver instances (4, 5, and 6), you can configure through

the Web browser interface.

When you specify the receiver manually, you must configure a variety of

settings that the sFlow receiver would otherwise configure itself. These

settings include not only the receiver’s IP address and port, but also how the

module’s sFlow agent packages the samples.

Follow these steps:

1. Select Special Features > sFlow and select the Receiver tab.

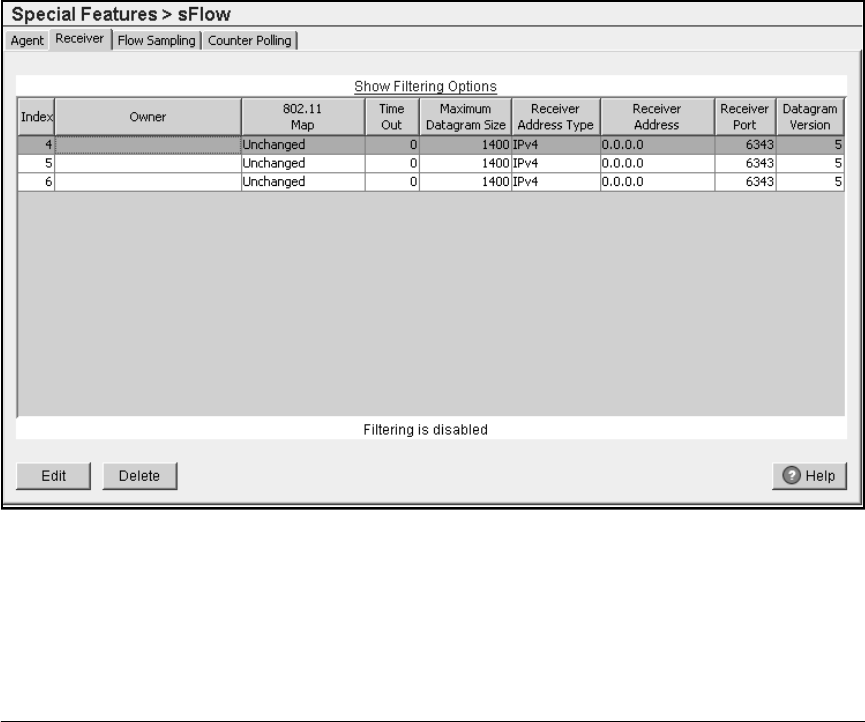

Figure 14-2. Special Features > sFlow > Receiver Screen

2. The three receiver instances available for configuration through the Web

browser interface are listed by index number (4, 5, and 6). Highlight one

of the instances.

3. Click the Edit button. The Receiver Configuration screen is displayed.
