14-15

sFlow Agent

Configuring sFlow Using the Web Browser Interface

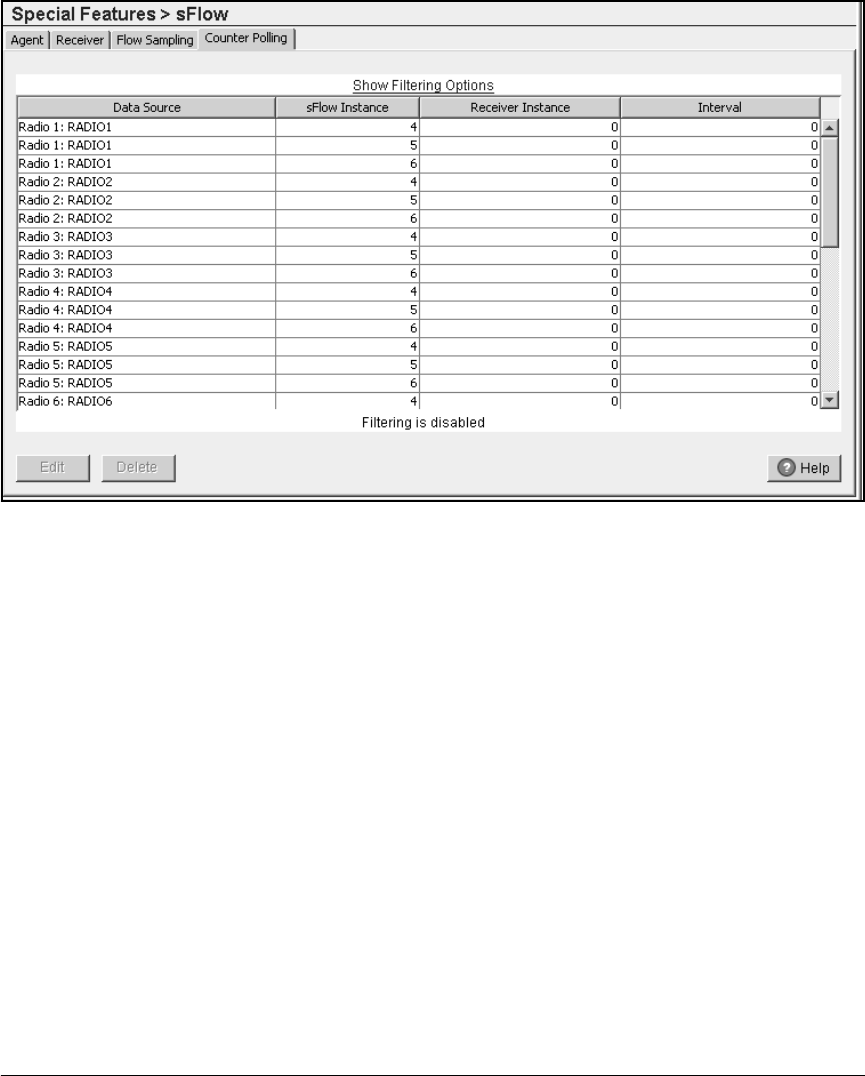

Figure 14-6. Special Features > sFlow > Counter Polling Screen

The separate instances allow the agent to report counters to up to six sFlow

receivers. By default, counter polling is disabled: the instances are not mapped

to receivers and the polling interval is set to 0.

The sFlow agent begins polling radios when either of the following occurs:

■ An sFlow receiver contacts the module’s sFlow agent and claims an

available counter polling sFlow instance. (An instance is available if the

receiver instance is set to 0.) The receiver controls the configuration and

sets the polling interval.

■ You manually set a polling interval greater than 0 in a counter polling

sFlow instance. You also associate the polling sFlow instance with a

manually configured sFlow receiver instance.

To manually activate counter polling on a radio, follow these steps:

1. Select Special Features > sFlow and select the Counter Polling tab.

2. Select one of the instances on the radio that you want to poll.
