sFlow Agent
Configuring sFlow Using the Web Browser Interface

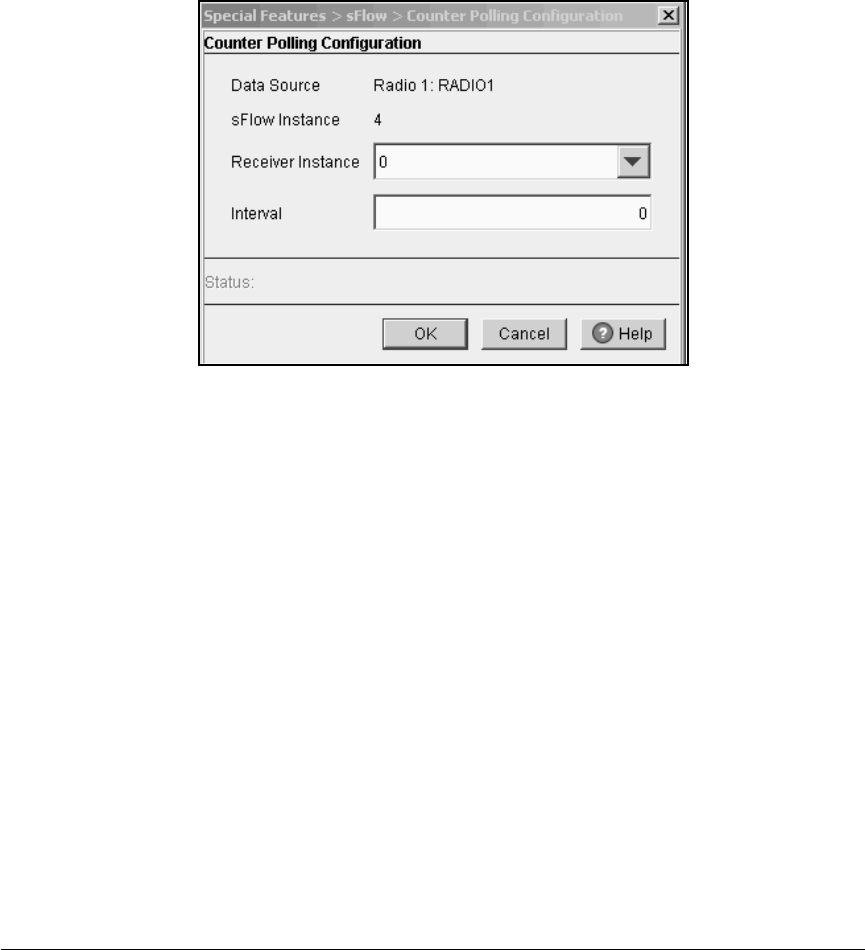

3. Click the Edit button. The Counter Polling Configuration screen is displayed.
For the Data Source, the screen displays the index and name of the radio
that the module’s agent polls. The sFlow Instance shows which of the six
instances you are currently configuring.
Figure 14-7. Counter Polling Configuration
4. Select 4, 5, or 6 from the Receiver Instance drop-down menu.
The Wireless Edge Services xl Module’s sFlow agent sends the counters
for this radio to the sFlow collector associated with the selected instance.
You can map this sFlow instance to any receiver instance, even if that
receiver is already mapped to another instance on this radio.
5. Enter a value between 20 and 65535 in the Interval field. This is the
maximum length, in seconds, between polls on this radio.
A lower value mandates more frequent polling. As always, balance the
greater accuracy offered by frequent polling with the extra overhead.
6. Click the OK button.
7. Click the Save link to copy the configuration to the startup-config.
