1-68

Introduction

Radio Ports

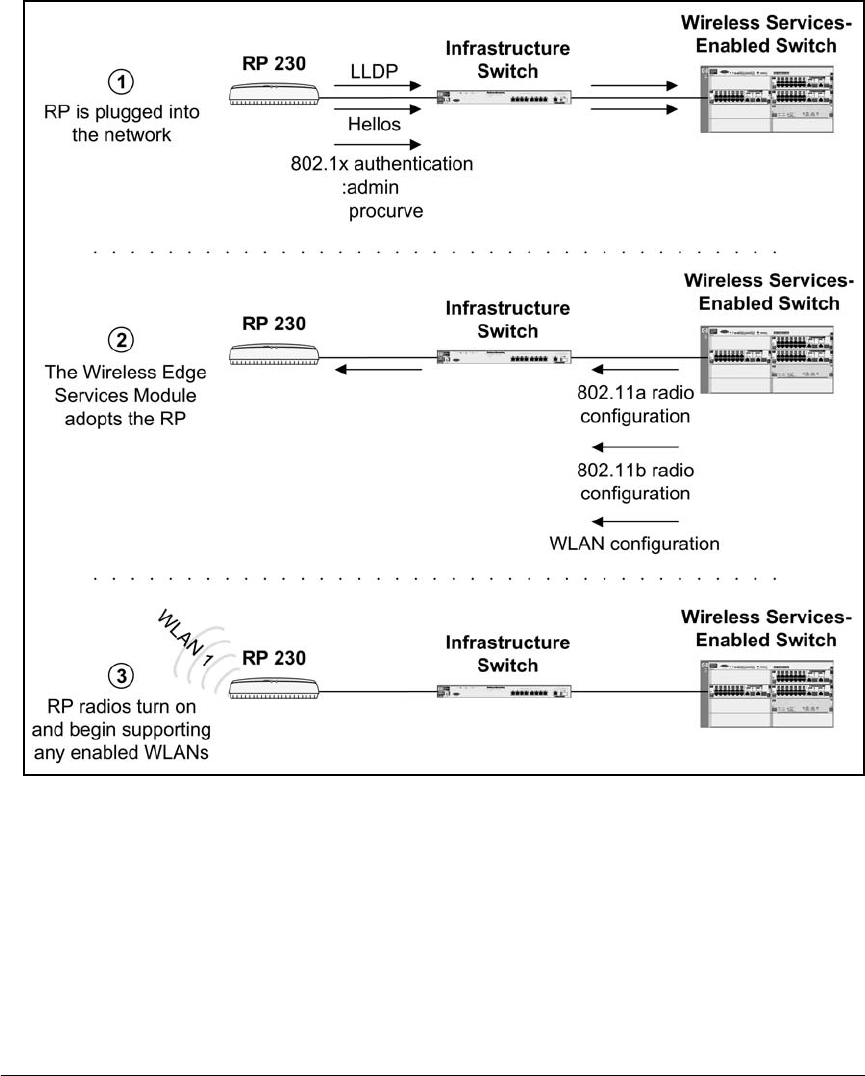

Figure 1-22. Communications Between an RP and the Wireless Edge Services

xl Module

If you must place your RP on a different subnetwork from the Radio Port VLAN,

the messages listed above fail to receive a response from the Wireless Edge

Services xl Module. The RP initiates Layer 3 adoption, sending these messages:

■ DHCP messages—request an IP address and other options such as a

default gateway, a DNS server address, a domain name, and private option

189 (which specifies up to three IP addresses for Wireless Edge Services

xl Modules).
