1-72

Introduction

Radio Ports

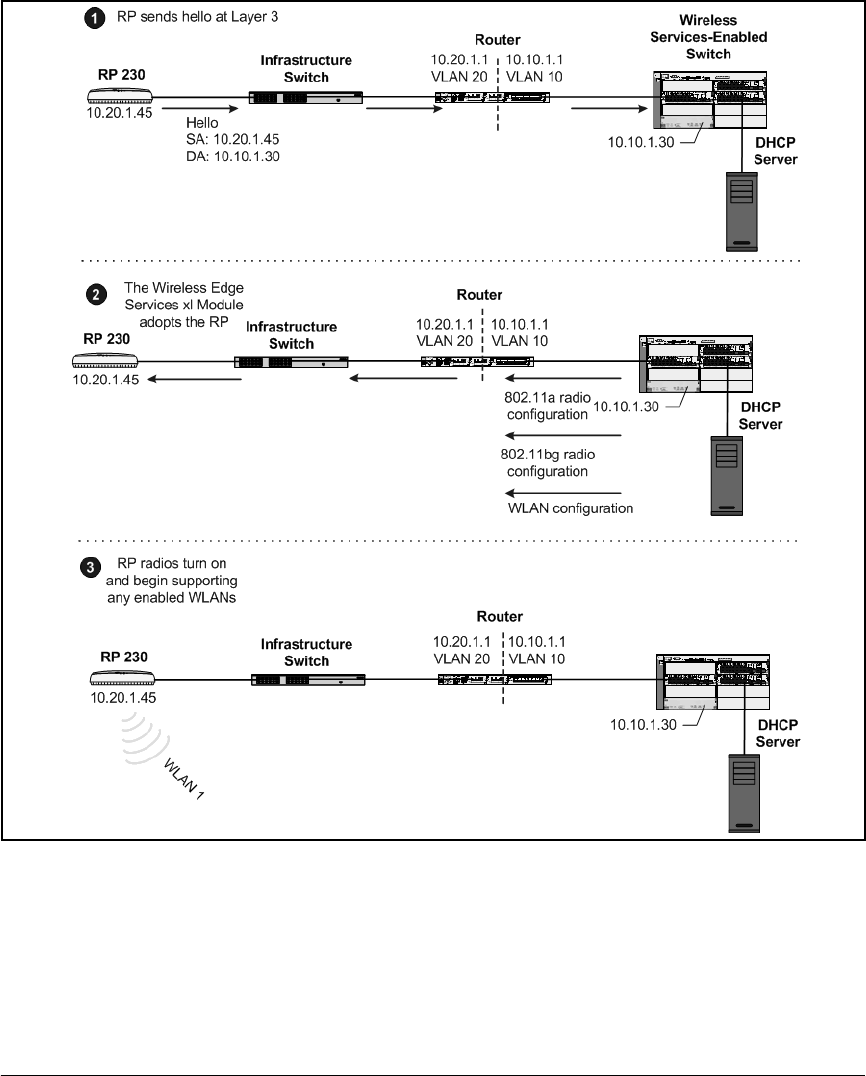

Figure 1-24. Deploying a Configuration

Managing RPs in a Self-Healing Network

A Wireless Edge Services xl Module collects a variety of information from

managed RPs. For example, RPs configured as detectors report information

about neighboring APs. The module then processes this information into lists

of authorized and unauthorized APs, according to rules that you configure.
