36 HP 2012sa Modular Smart Array user guide • January 2013

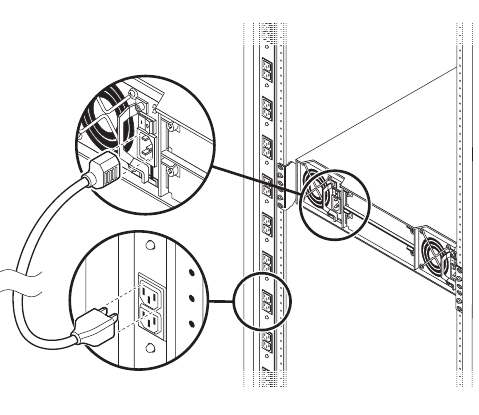

Connecting AC Power
Use this procedure to connect AC power to the enclosures.
1. Verify that both power switches are off.
2. Using the AC power cords, for each enclosure, connect one power-and-cooling
module to one power source in the rack, and the other power-and cooling-module to
a separate power source in the rack.
3. Connect the primary power cords from the rack to separate external power sources.
Power on the system as described in the following section.
