HP StorageWorks Storage Mirroring Virtual Infrastructure user's guide (T2558-96095, April 2008)

31

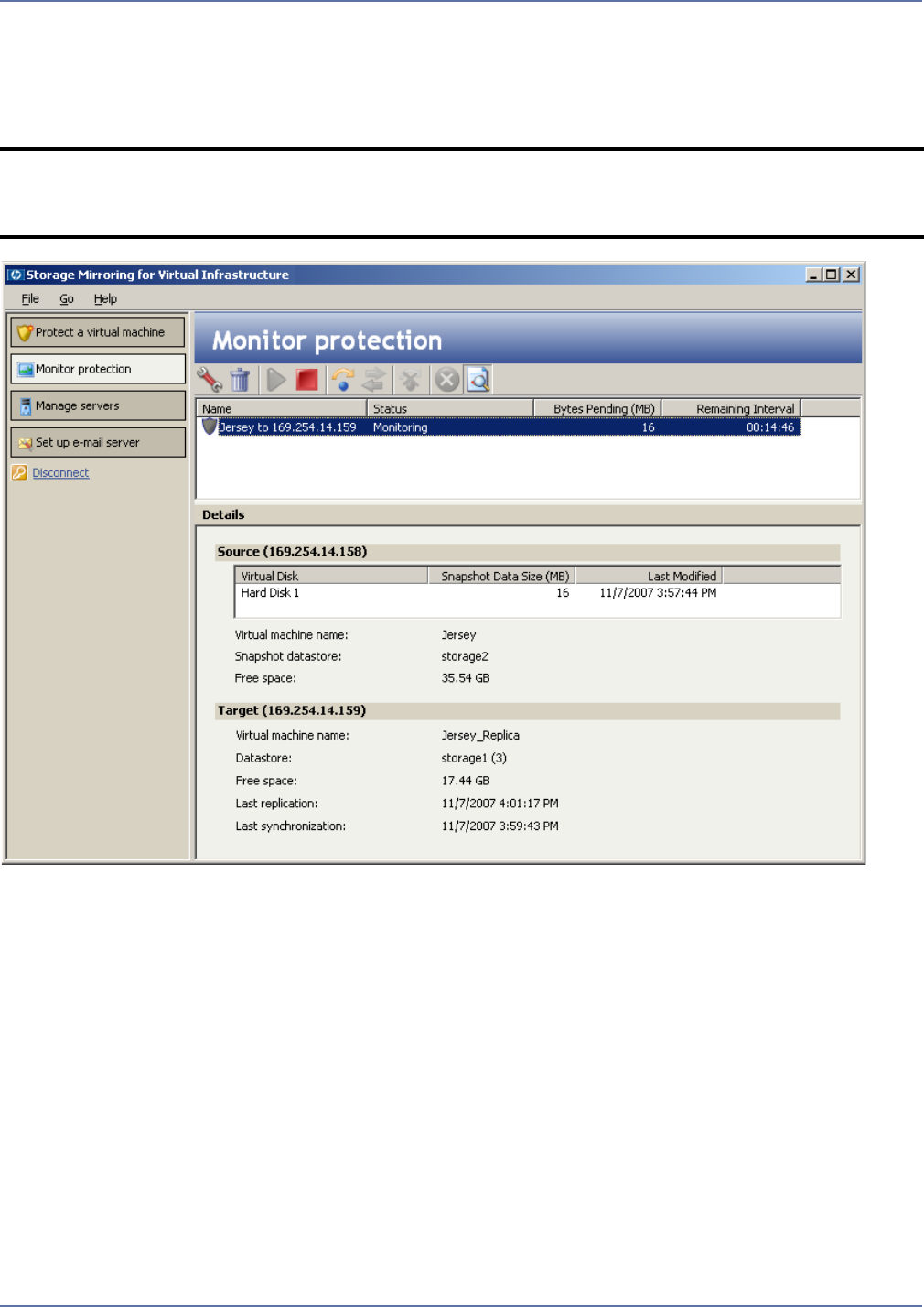

Monitor your Protected Virtual Machines
The Monitor protection page displays a status summary for each of the virtual machines you have
protected using Storage Mirroring for Virtual Infrastructure. For each protection you have configured,
you can view the current status and bytes pending.
On this page, you can monitor and manage your protection jobs. To manage a protection, select a
protection in the area at the top of the window, then use the buttons at the top of the page to perform
the following tasks:
z Configure Protection—Select a protection, then click the Configure Protection button to open
the protection summary for the selected protection. Click the Change
button next to setting you
want to modify. For more information about changing protection settings, see Modify protection
settings on page 22.
NOTE: During the synchronization phase, the Bytes Pending column displays the un-transferred
base
.vmdk file size + snapshot file size. For example, if the synchronization is 10%
done, the base
.vmdk files are 5 GB, and the snapshot files are 48 MB, the Bytes Pending
value is 5 GB*90%+48 MB, which equals 4548 MB.
