About SWCC
33Command Console V2.5 User Guide
SCSI Connections
The SCSI connection uses the SCSI bus or Fibre Channel bus that is the primary
data channel for the storage subsystem. The amount of management information
that passes between the Storage window and the subsystem is small compared to
the amount of data moved by a typical storage request.
Like the direct serial connection, the SCSI connection does not use an agent. The
SCSI connection only supports a Storage window or CLI window without a
Navigation tree. There is no event logging, email, or pager notification with a
SCSI connection.
Establishing a SCSI connection requires that a Command Console LUN or a
virtual disk be configured on the storage subsystem.
1. Click Start > Programs > Command Console > StorageWorks CC HSxxx.
2. When the Connection Selection dialog box displays, select the SCSI option.
The SCSI Setup window opens, as shown in Figure 6.
3. Select a drive mapped to the subsystem or a CCL, and then click Connect.
Command Console connects to the storage subsystem and displays the
corresponding Storage window.
.

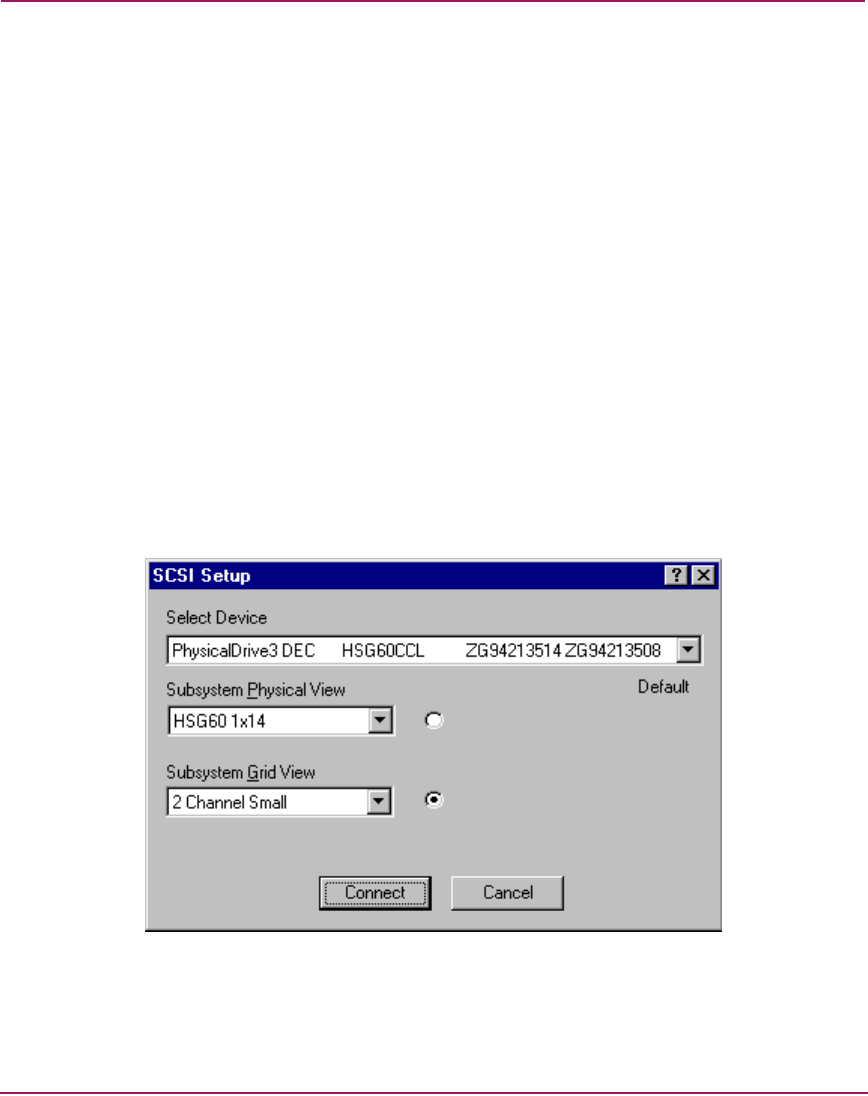

Figure 6: SCSI Setup window
