Required system configuration for acquiring performance information
This section describes the system configuration required to acquire performance information of a
storage system.
The following figure shows an example system configuration when such information is acquired.

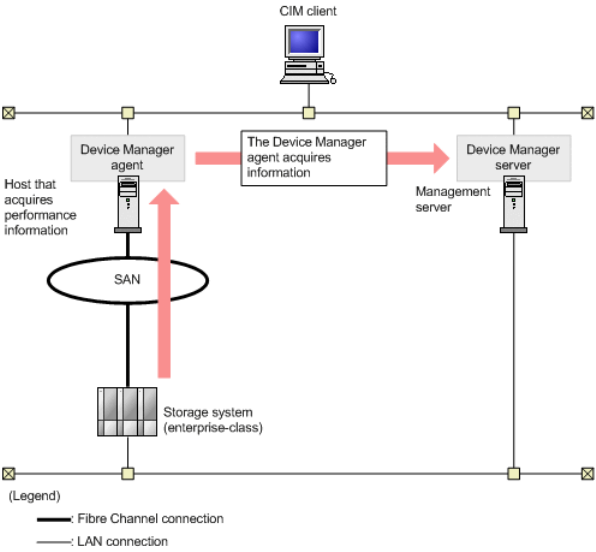

Figure 25 Example of a system configuration in which performance information of a storage system
is acquired
Management server
A management server is a server in which Device Manager server version 5.9 or later is installed.
You must set the management server so that CIM/WBEM can be used. For details on how to set
up CIM/WBEM, see “Enabling CIM/WBEM functions” on page 156 and “Properties related to
CIM/WBEM functions” on page 157.
Host that acquires performance information
This host is required when acquiring performance information of P9500, XP24000/XP20000 or
XP12000/XP10000/SVS200. Device Manager agent version 7.0 or later is required for P9500
storage systems, and Device Manager agent version 5.9 or later is required for
XP24000/XP20000 or XP12000/XP10000/SVS200 storage systems.
We recommend that use the same computer for the management server and for the host that ac-
quires performance information. In this case, the OS for the host that acquires performance in-
formation must be able to support both Device Manager server and the Device Manager agent.
For example, if the OS for the management server is Windows XP, you cannot install the Device
Manager agent, so you cannot use this computer as the host that acquires performance information.
Even if you use different computers for the management server and for the host that acquires
performance information, the OS for the host that acquires performance information must be
Windows, or Linux.
The host that acquires performance information cannot run HP-UX or AIX.
