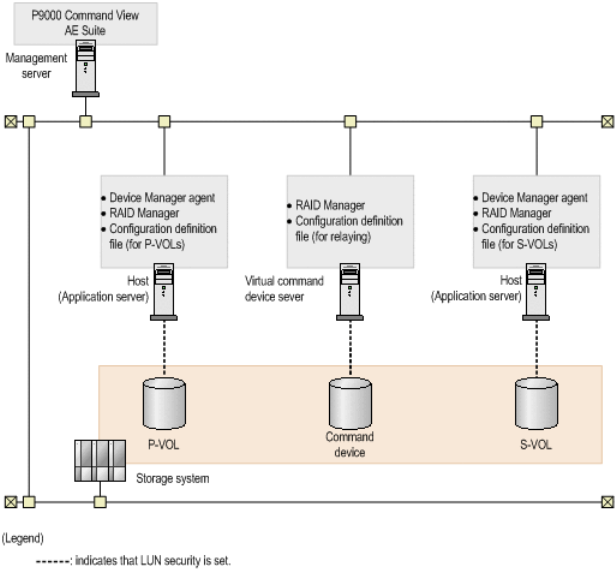

Figure 20 Example of a system configuration for managing copy pairs (virtual command device server
configuration)
Management server conditions:
The following computers must be registered as the Device Manager management resources:
• A host that recognizes the P-VOL
• A host that recognizes the S-VOL
Host (application servers) conditions:
• Device Manager agent version 7.1 or later must be installed on the application servers.
• RAID Manager version 01-25-03/01 or later must be installed on the application server.
• If there are multiple NICs on the host (application server), the Device Manager agent and
RAID Manager must use the same IP address.
Virtual command device server conditions:
• RAID Manager version 01-25-03/01 or later must be installed on the virtual command device
server.
• The horcm instance for relay must be running on the virtual command device server.
System configuration and requirements60
