5.5 PatchiX Training

HP Patch/iX Information Screens

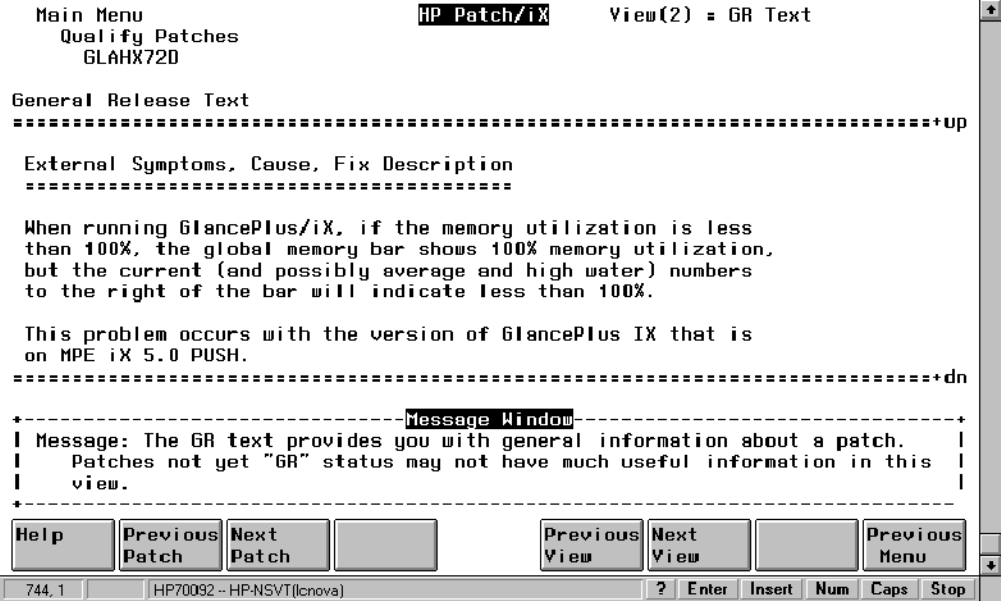

Figure 2-3. HP Patch/iX Information Screen
Figure 2-3 presents an example information screen. The items that appear in an
Information Screen are:
• Screen Hierarchy - This area displays a tree of your path, from the Main Menu, to
the current screen. In the current screen is the patch GLAHX72D, which was
selected from the Qualify Patches screen, which was selected from the Main
Menu.
• Current View Number - This is the number of the current view. Each view has a
number associated with it to provide a direct method of accessing the view. To
access a view by its number press the number key associated with the view.
• Current View Name - The information viewer is used to display patch
information. There are many types of information available about a specific patch.
You can type the view number to go directly to a view, or use the Previous View
[f5] and Next View [f6] function keys.
• Information Title - The information title is a header for the scrolling information
window that describes the information that is shown in the Scrollable Information
Window.
• Scrollable Information Window - This window in the middle of the screen is
delineated by rows of equal signs. The top boundary will end in "+up" if you can
scroll up. The bottom boundary will end in "+dn" if you can scroll down.
