FC Configuration Procedures
5–2 HSG80 ACS Solution Software Version 8.7 for Compaq Tru64 UNIX Installation and
Configuration Guide
Establishing a Local Connection
A local connection is required to configure the controller until a command console
LUN (CCL) is established using the CLI. Communication with the controller can be
through the CLI or SWCC.
The maintenance port, shown in Figure 5–1, provides a way to connect a maintenance
terminal. The maintenance terminal can be an EIA-423 compatible terminal or a
computer running a terminal emulator program. The maintenance port accepts a
standard RS-232 jack. The maintenance port cable shown in Figure 5–1 has a 9-pin
connector molded onto the end for a PC connection. If you need a terminal connection
or a 25-pin connection, you can order optional cabling.

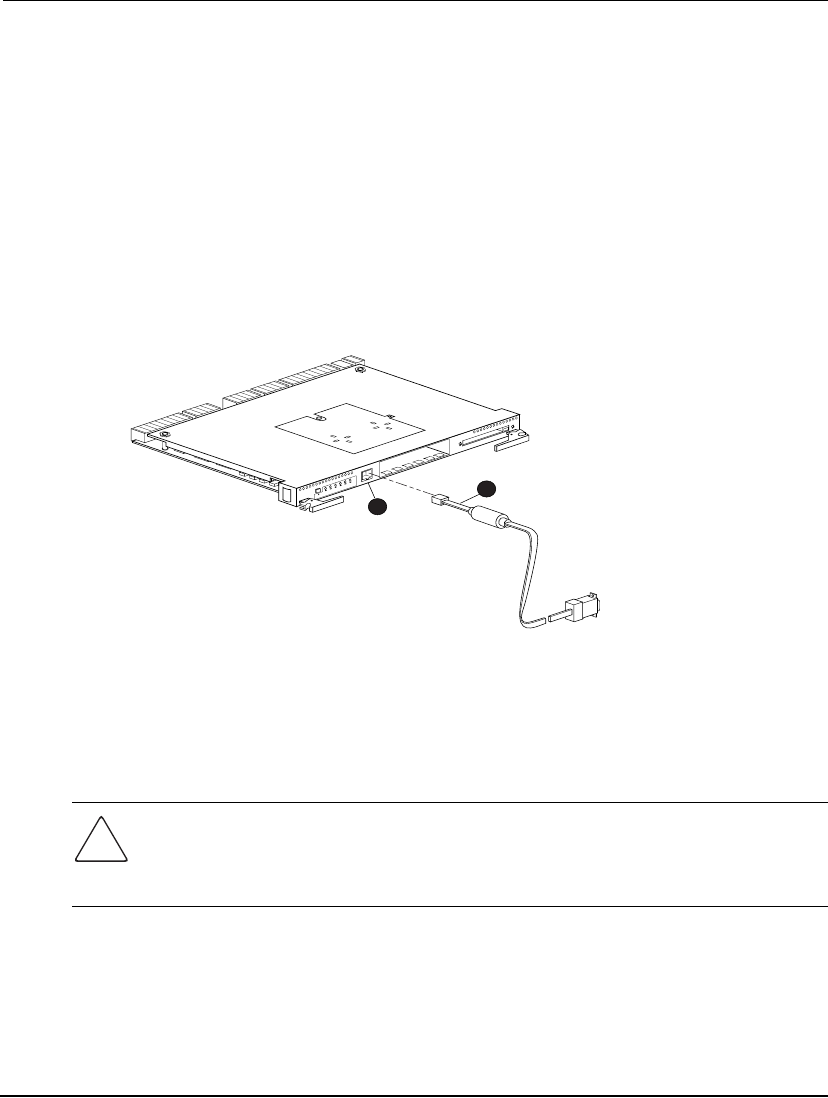

Figure 5–1: Maintenance port connection
CAUTION: The maintenance port generates, uses, and can radiate radio-frequency
energy through its cables. This energy may interfere with radio and television
reception. Disconnect all maintenance port cables when not communicating with the
controller through the local connection.
1 Maintenance Port
Cable
2 Maintenance Port
CXO7181A
1
2
