Installing, Configuring, and Removing the Client
B–10 HSG80 ACS Solution Software Version 8.7 for Compaq Tru64 UNIX Installation and
Configuration Guide
Adding Storage Subsystem and its Host to Navigation
Tree
The Navigation Tree enables you to manage storage over the network by using the
Storage Window. If you plan to use pager notification, you must add the storage
subsystem to the Navigation Tree.
1. Verify that you have properly installed and configured the HS-Series Agent on the
storage subsystem host.
2. Click Start > Programs > Command Console > StorageWorks Command Console.
Client displays the Navigation Window. The Navigation Window lets you monitor
and manage many storage subsystems over the network.

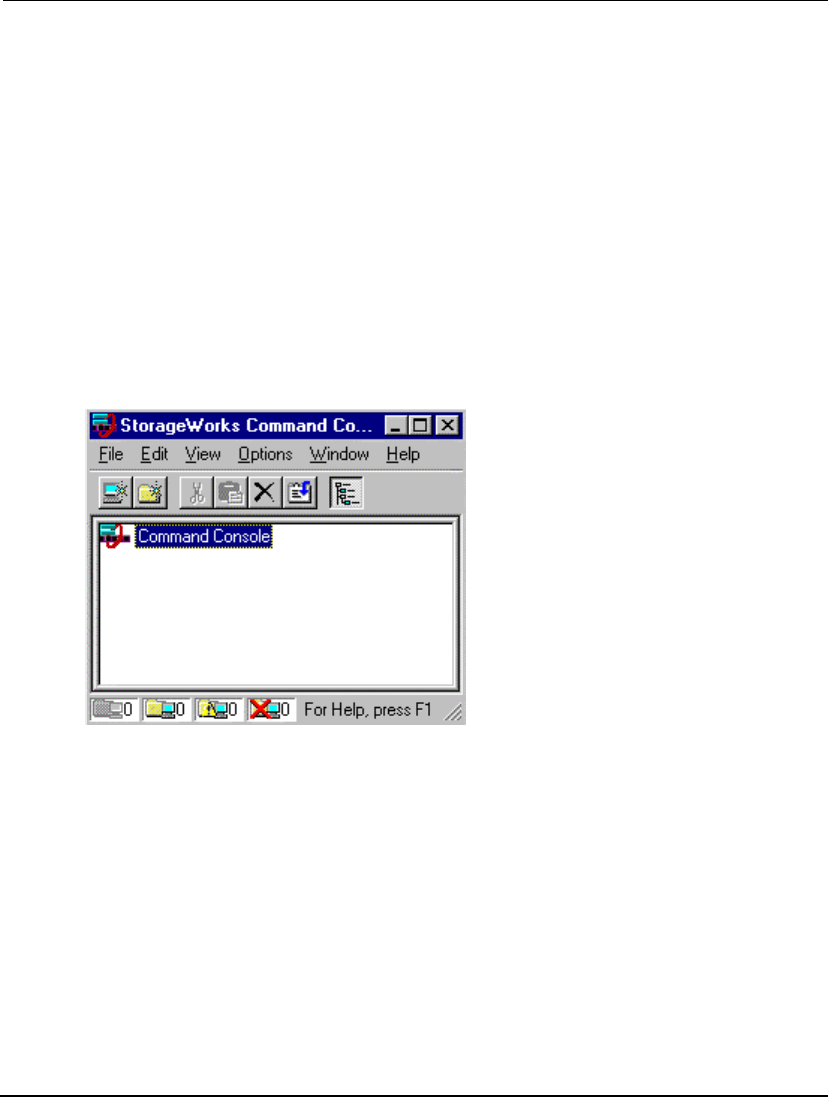

Figure B–1: Navigation Window
3. Click File > Add System. The Add System window appears.
4. Type the host name or its TCP/IP address and click Apply.
5. Click Close.
