Planning a Subsystem
1–28 HSG80 ACS Solution Software Version 8.7 for Compaq Tru64 UNIX Installation and
Configuration Guide
• Controller A, port 1—worldwide name + 3, for example 5000-1FE1-FF0C-EE03
• Controller A, port 2—worldwide name + 4, for example 5000-1FE1-FF0C-EE04
Use the CLI command, SHOW THIS_CONTROLLER/OTHER_CONTROLLER to display the
subsystem’s worldwide name.
Restoring Worldwide Names (Node IDs)
If a situation occurs that requires you to restore the worldwide name, you can restore it
using the worldwide name and checksum printed on the sticker on the frame into
which the controller is inserted.
Figure 1–15 shows the placement of the worldwide name label for the Model 2200
enclosure, and Figure 1–16 for the BA370 enclosure.

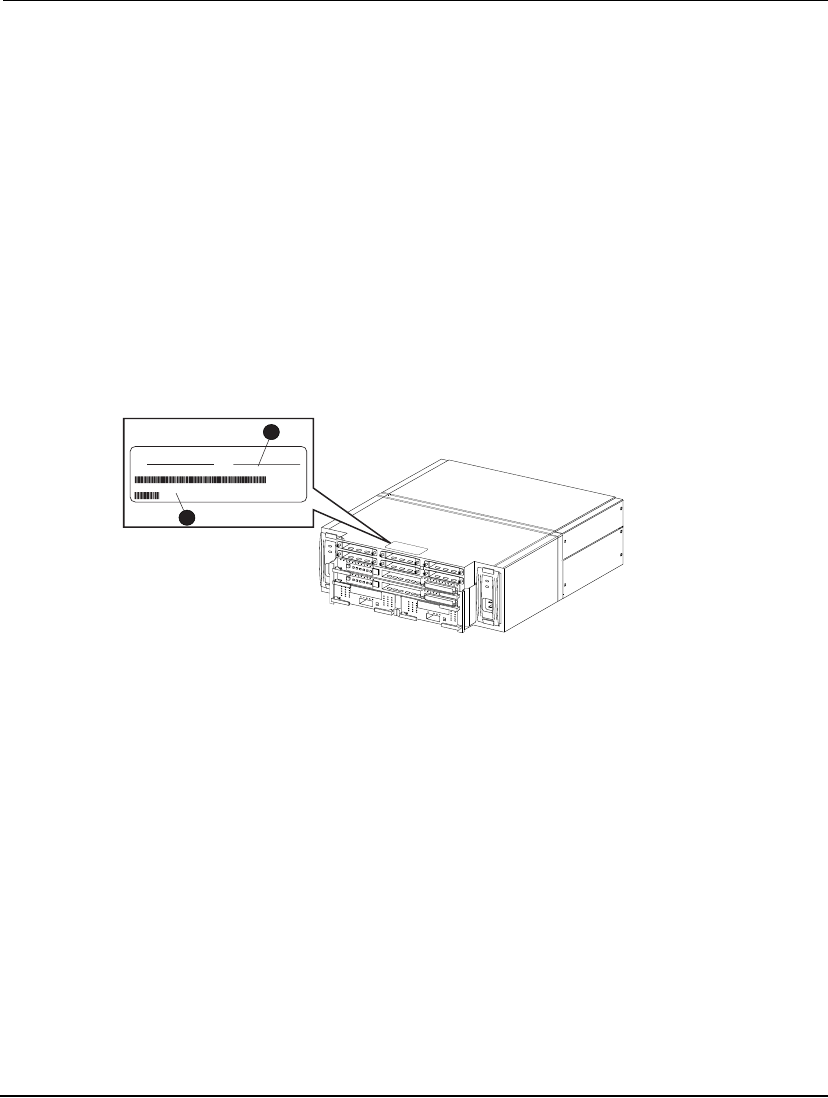

Figure 1–15: Placement of the worldwide name label on the Model 2200
enclosure
1 Node ID
(Worldwide name)
2 Checksum
CXO7228A
WWN INFORMATION
P/N:
WWN:
Checksum:
NNNN – NNNN – NNNN – NNNN
NN
S/N:
1
2
