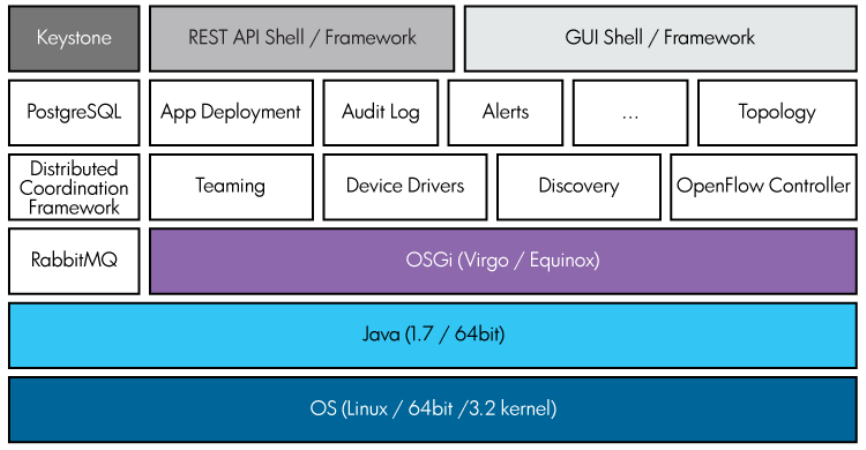

Figure 4 HP VAN SDN Controller Software Stack
Jersey [2] is a JAX-RS (JSR 311) reference Implementation for building RESTful Web services. In
Representational State Transfer (REST) architectural style, data and functionality are considered
resources, and these resources are accessed using Uniform Resource Identifiers (URIs), typically
links on the web. REST-style architectures conventionally consist of clients and servers and they are
designed to use a stateless communication protocol, typically HTTP. Clients initiate requests to
servers; servers process requests and return appropriate responses. Requests and responses are
built around the transfer of representations of resources. Clients and servers exchange
representations of resources using a standardized interface and protocol. These principles
encourage RESTful applications to be simple, lightweight, and have high performance.
The HP VAN SDN Controller also offers a framework to develop Web User Interfaces - HP SKI. The
SKI Framework provides a foundation on which developers can create a browser-based web
application.
The HP VAN SDN Controller makes use of external services providing APIs that allow SDN
applications to make use of them.
Keystone [9] is an external service that provides authentication and high level authorization
services. It supports token-based authentication scheme which is used to secure the RESTful web
services (Or REST APIs) and the web user interfaces.
Hazelcast[10] is an in-memory data grid management software that enables: Scale-out
computing, resilience and fast, big data.
Apache Cassandra [10] is a high performance, extremely scalable, fault tolerant (no single point
of failure), distributed post-relational database solution. Cassandra combines all the benefits of
Google Bigtable and Amazon Dynamo to handle the types of database management needs that
traditional RDBMS vendors cannot support.
Figure 5 illustrates with more detail the tiers that compose the HP VAN SDN Controller. It shows
the principal interfaces and their roles in connecting components within each tier, the tiers to each
other and the entire system to the external world.
3
