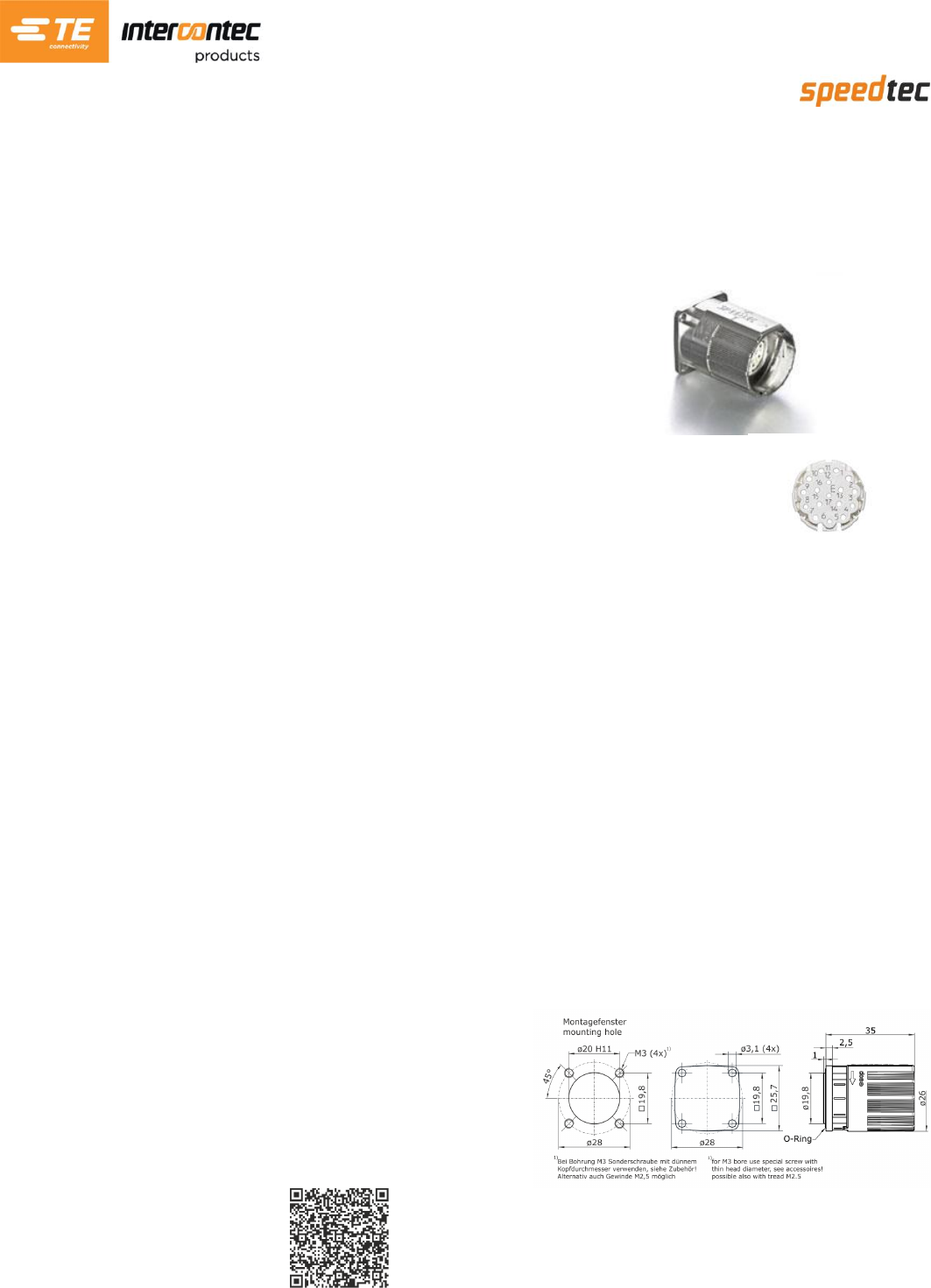

Data Sheet

issue: 28.06.2018
623 Bulkhead connector
17-pin
insulation insert Code 0°
housing code 1
flange mount /Flange 25x25
Technical Data
number of pins 17
temperature range -20 °C to 130 °C
protection type when connected IP 66/67
Electrical Data signal
rated current max. 7 A*
rated voltage 125 V (AC/DC)
rated insulation voltage (L-L) 2000 V
mating cycles 500
Data according to VDE 0110/EN61984, Paragraph 6.19.2.2
pollution degree 3
over voltage category III
max. height for operation 2000 m
Material
housing zinc diecast / nickel plated
insulation insert PBT, UL 94 / V0
seals FKM
Contacts (not part of product contents)
Tools (not part of product contents)
A DF A 015 NN 00 00 0101 000
Contact Arrangement
mating view
© 2018 TE Connectivity
TE Connectivity, TE connectivity (logo), intercontec (logo) and speedtec
are trademarks.
While TE Connectivity (TE) has made every reasonable effort to ensure the
accuracy of the information in this presentation, TE does not guarantee that it is
error-free, nor does TE make any other representation, warranty or guarantee
that the information is accurate, correct, reliable or current. TE reserves the
right to make any adjustments to the information contained herein at any time
without notice. TE expressly disclaims all implied warranties regarding the
information contained herein, including, but not limited to, any implied
warranties of merchantability or fitness for a particular purpose. The dimensions
in this article are for reference purposes only and are subject to change without
notice. Specifications are subject to change without notice. Consult TE for the
latest dimensions and design specifications.
TE Connectivity Industrial GmbH
Bernrieder Straße 15
94559 Niederwinkling, Deutschland
Tel.: [phone]
Fax: [phone]
E-Mail: [e-mail]
Web: www.intercontec.biz
Main Dimensions
Bulkhead connector
*for max. wire cross-section
pay attention to the
cross-section of used contacts
