Specification

Energy Controls
Project:
Location:
Product Type:
Contact/Phone:
Model #:
T7000B Series
The T7000B Series Mechanical Time Switches are designed for
industrial, commercial and residential applications with 7-Day ON/OFF
programming and 4PST and 4 pole (2NO/2NC) switching.
Features
• True 7-Day load control with minimum ON/OFF time of 3 ½ hours
• Separate clock motor terminals for switching loads not on-line voltage
• Carryover automatically rewinds when power resumes
• One hour of rewinding time for every two hours of power outage
Ratings
Enclosure Type: See table
Knockouts: Combination
1
⁄2" -
3
⁄4" nominal knockouts,
two on back and one on side, and two on
bottom. One inch knockout on bottom
Switch Type: See table
Switch Ratings: Each Pole:
40 Amp Resistive, 120-480 VAC
40 Amp Tungsten,
Inductive or 1000 VA Pilot Duty,
120-277 VAC, 2 HP, 120 VAC
5 HP, 240 VAC Single Phase
7 ½ HP, 208 VAC,
10 HP, 240 VAC Three Phase
Power Input: 3 Watts Maximum;
Models with Carryover - 5 Watts Maximum
Carryover: Minimum time-mechanical operation: 16
hours. Carryover accuracy: ±2%
Operating Temperature: -40°F to 130°F (-40°C to 54°C)
Shipping Weight: Type 1 - 8 lbs. (3.6 kg)
Type 3R and Models with carryover-
10 lbs. (4.5 kg)
Warranty: Limited 1 year
Specification
Model with Type 1 Steel
Enclosure
Model with Type 1 Steel
Enclosure with Carryover
Model with Type 3R Steel
Enclosure
Switch Clock Motor
Volts 60 Hz
T7401B T7401BC T7401BR 4PST 125
T7402B T7402BC - 4PST 208-277
T7801B T7801BC - 2NO/2NC 125
T7802B - - 2NO/2NC 208-277

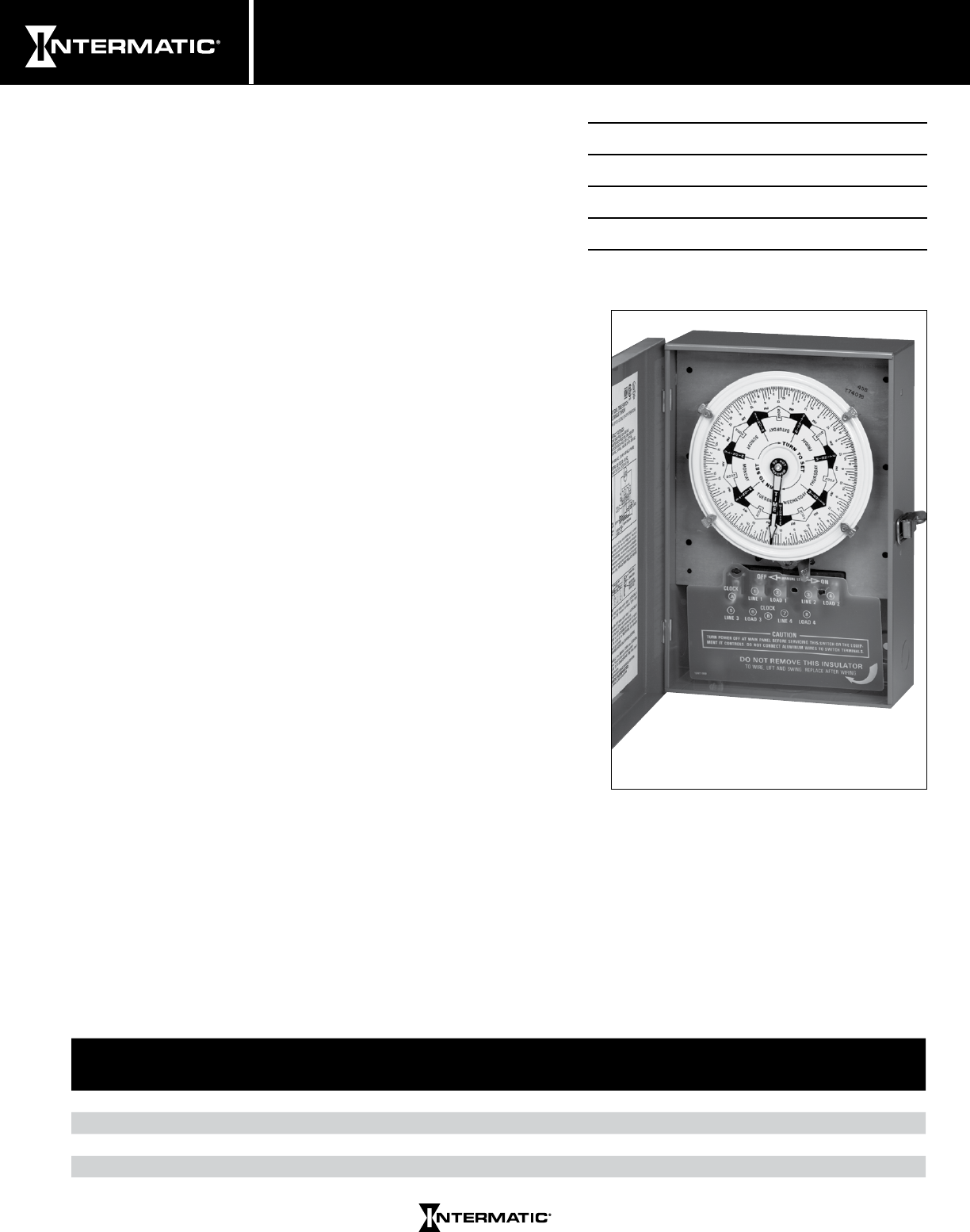

T7401B
T7000B Series
Electromechanical Time Switch
