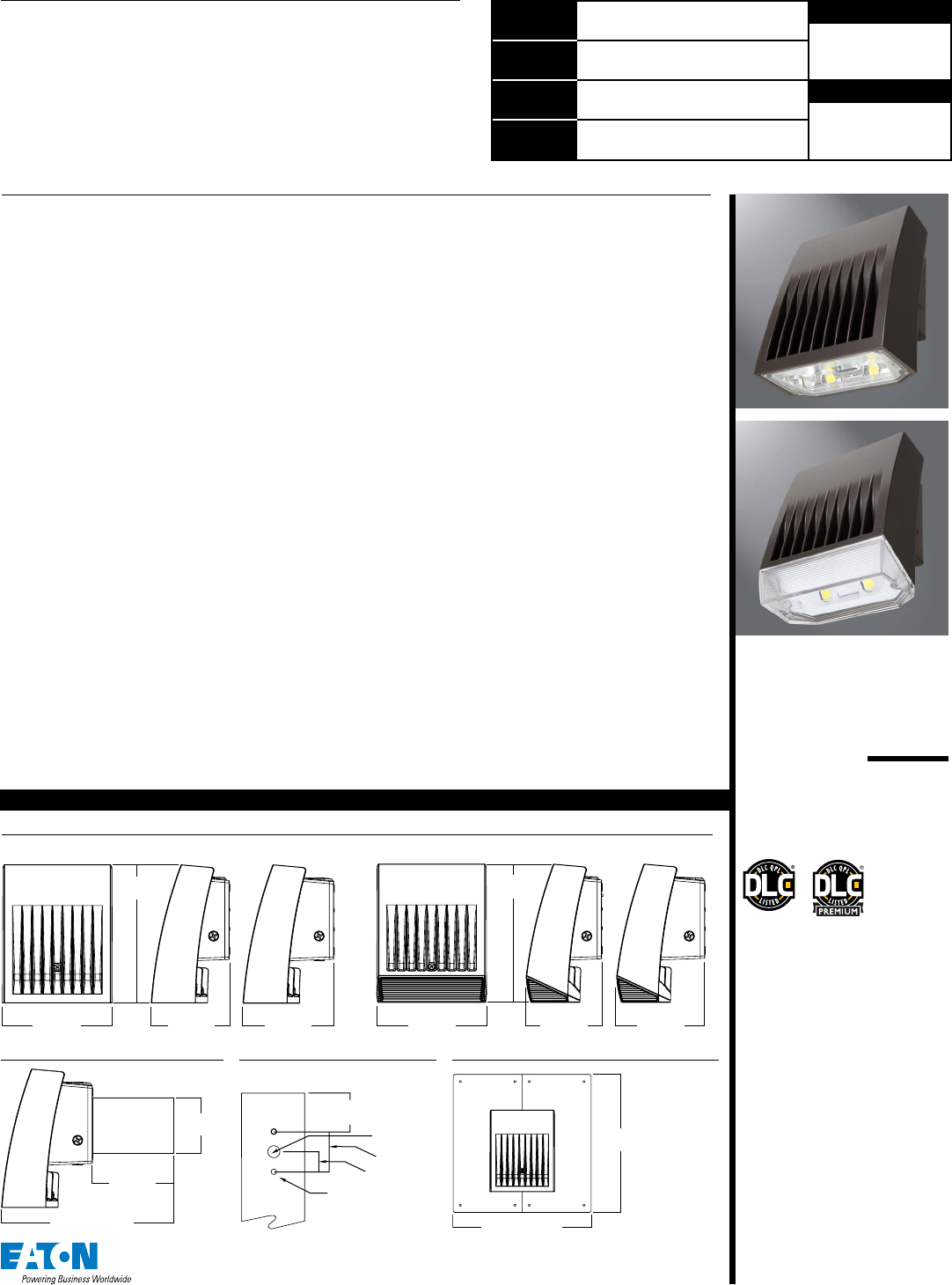

Specification Sheet

XTOR
CROSSTOUR
MAXX LED
APPLICATIONS:
WALL / SURFACE
INVERTED
SITE LIGHTING
Lumark
SPECIFICATION FEATURES
Construction
Low-profile LED design with
rugged one-piece, die-cast
aluminum back box and hinged
removable door. Matching housing
styles incorporate both a full cutoff
and refractive lens design. Full
cutoff and refractive lens models
are available in 58W, 81W and
102W. Patent pending secure
lock hinge feature allows for
safe and easy tool-less electrical
connections with the supplied
push-in connectors. Back box
includes four 1/2” NPT threaded
conduit entry points. The back
box is secured by four lag bolts
(supplied by others). External
fin design extracts heat from the
fixture surface. One-piece silicone
gasket seals door and back box.
Not recommended for car wash
applications.
Optical
Silicone sealed optical LED
chamber incorporates a custom
engineered reflector providing
high-efficiency illumination. Full
cutoff models integrate an impact-
resistant molded refractive prism
optical lens assembly meeting
requirements for Dark Sky
compliance. Refractive lens models
incorporate a molded lens
assembly designed for maximum
forward throw. Solid state LED
Crosstour MAXX luminaries are
thermally optimized with eight
lumen packages in cool 5000K,
neutral 4000K, or warm 3000K LED
color temperature (CCT).
Electrical
LED driver is mounted to the
die-cast aluminum housing for
optimal heat sinking. LED thermal
management system incorporates
both conduction and natural
convection to transfer heat rapidly
away from the LED source. 58W,
81W and 102W models operate
in -40°C to 40°C [-40°F to 104°F].
High ambient 50°C [122°F] models
available in 58W and 81W models
only. Crosstour MAXX luminaires
maintain greater than 89% of initial
light output after 72,000 hours
of operation. Four half-inch NPT
threaded conduit entry points
allow for thru-branch wiring. Back
box is an authorized electrical
wiring compartment. Integral LED
electronic driver incorporates surge
protection. 120-277V 50/60Hz,
480V 60Hz, or 347V 60Hz electrical
operation. 480V is compatible for
use with 480V Wye systems only.
Emergency Egress
Optional integral cold weather
battery emergency egress includes
emergency operation test switch
(available in 58W and 81W models
only), an AC-ON indicator light and
a premium extended rated sealed
maintenance-free nickel-metal
hydride battery pack. The separate
emergency lighting LEDs are wired
to provide redundant emergency
lighting. Listed to UL Standard 924,
Emergency Lighting.
Area and Site Pole Mounting
Optional extruded aluminum 6-1/2”
arm features internal bolt guides
for supplied twin support rods,
allowing for easy positioning of the
fixture during installation to pole.
Supplied with round plate adapter
plate. Optional tenon adapter fits
2-3/8” or 3-1/2” O.D. Tenon.
Finish
Crosstour MAXX is protected with
a super TGIC carbon bronze or
summit white polyester powder
coat paint. Super TGIC powder coat
paint finishes withstand extreme
climate conditions while providing
optimal color and gloss retention
of the installed life.
Warranty
Five-year warranty.
TD514005EN
April 18, 2018 8:58 AM
The patented Lumark Crosstour™ MAXX LED wall pack series of
luminaries provides low-profile architectural style with super bright,
energy-efficient LEDs. The rugged die-cast aluminum construction,
back box with secure lock hinges, stainless steel hardware along with a
sealed and gasketed optical compartment make Crosstour impervious
to contaminants. The Crosstour MAXX wall luminaire is ideal for wall/
surface, inverted mount for facade/canopy illumination, perimeter and
site lighting. Typical applications include pedestrian walkways, building
entrances, multi-use facilities, industrial facilities, perimeter parking
areas, storage facilities, institutions, schools and loading docks.
DESCRIPTION
CERTIFICATION DATA
UL/cUL Wet Location Listed
LM79 / LM80 Compliant
ROHS Compliant
NOM Compliant Models
3G Vibration Tested
UL924 Listed (CBP Models)
IP66 Rated
DesignLights Consortium
®
Qualified*
TECHNICAL DATA
40°C Ambient Temperature
External Supply Wiring 90°C Minimum
EPA
Effective Projected Area (Sq. Ft.):
XTOR6B, XTOR8B, XTOR12B=0.54
With Pole Mount Arm=0.98
SHIPPING DATA:
Approximate Net Weight:
12-15 lbs. [5.4-6.8 kgs.]
FULL CUTOFF DEEP BACK BOX DEEP BACK BOXREFRACTIVE LENS
8-3/4"
[222mm]
8-3/4"
[222mm]
6-1/4"
[159mm]
7"
[178mm]
6"
[152mm]
7"
[178mm]
11 "
[279mm]
11 "
[279mm]
DIMENSIONS
*www.designlights.org
13-1/2" [343mm]
6-1/2"
[165mm]
4-1/2"
[11
4mm]
OPTIONAL POLE MOUNT ARM
2-5/8"
[67mm]
3/4" [19mm]
Dia. Hole
(2) 9/16" [15mm]
Dia. Holes
3" [77mm]
1
-1/2" [39mm]
TYPE "C"
ARM DRILLING
19-1/4" [489mm]
19-1/4"
[489mm]
ESCUTCHEON PLATES
