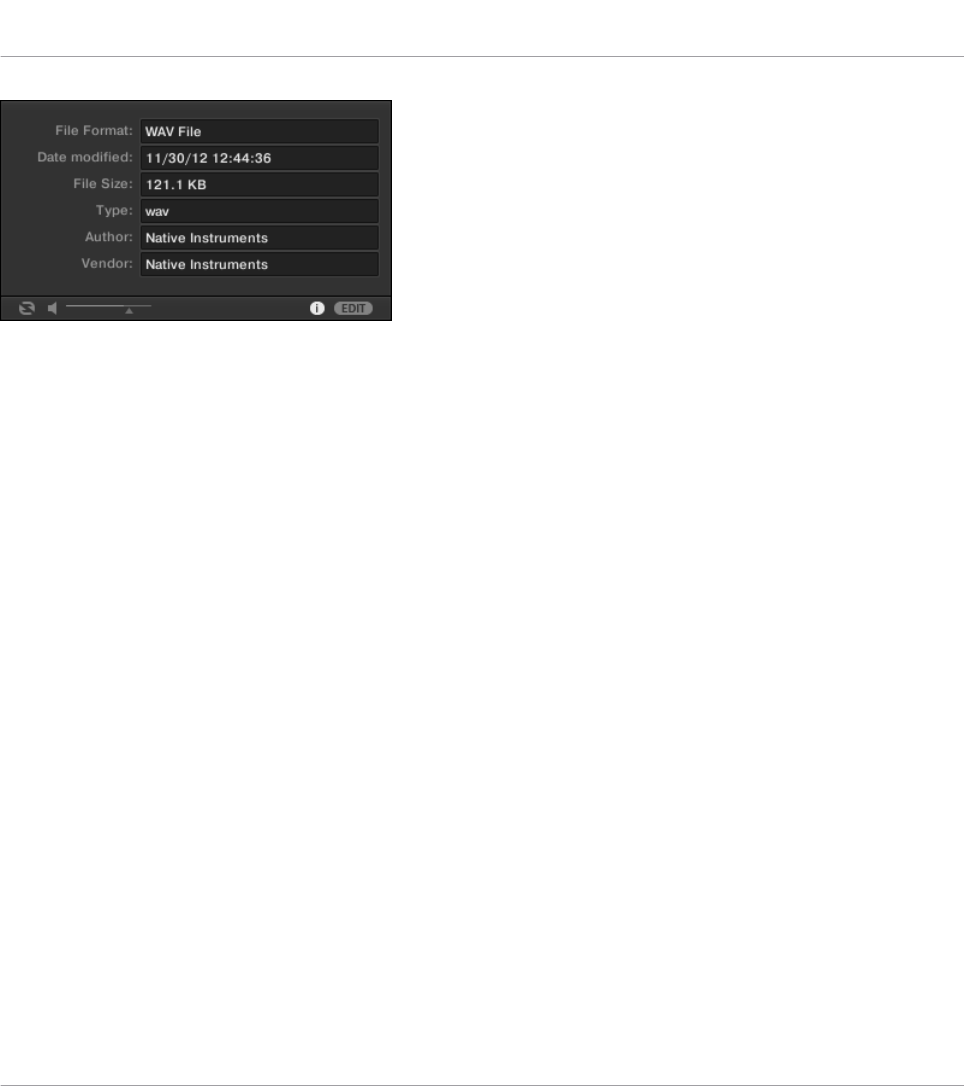

The Information box provides various information on the selected file(s).
If the selected files have different characteristics, the corresponding fields in the Information
box will read multi.
3.4 Editing the Files’ Tags and Properties
The Attribute Editor allows you to assign or edit tags and properties to your MASCHINE files to
make it easier to find them later when browsing the MASCHINE Library in the LIBRARY pane
(see section ↑3.2, Searching and Loading Files from the Library).
3.4.1 Attribute Editor Basics
The Attribute Editor is used in the following situations:
▪ At any time you can edit the tags and properties of user files already in the Library by se-
lecting them in the Result list of the LIBRARY pane and clicking the EDIT button at the
bottom right of the Browser. After you have finished editing click APPLY to apply your
changes to the selected files, or click the lit EDIT button again to cancel you changes and
close the Attribute Editor. See section ↑3.2, Searching and Loading Files from the Library
for more information on the LIBRARY pane.
▪ When importing folders to the MASCHINE Library from the Browser’s FILES pane, click-
ing IMPORT at the bottom right of the Browser automatically opens the Attribute Editor so
you can tag the files being imported. After you have finished tagging click OK to import
the files to the Library and apply the selected tags, or click CANCEL to cancel the import.
See section ↑3.5, Loading and Importing Files from Your File System for more information
on the FILES pane.
