▪ In your Project you can have any number of Groups. You can create, fill up, and delete
Groups as you see fit. If you delete a Group, all following Groups are shifted up in the
Group List to fill the gap. If you use more than eight Groups, another Group bank is auto-
matically created.
4.1.3 Selecting Multiple Sounds or Groups
In MASCHINE you can select multiple Sounds or multiple Groups at once. This notably allows you
to change a parameter value for all selected Sounds/Groups at a time!
To achieve this, MASCHINE distinguishes the “focus” from the “selection”:
▪ The focus determines what is displayed in the Control area and on your controller. For ex-
ample, by clicking a Sound in the Sound List you are putting the focus on that Sound,
and the Control area and your controller will display its parameters (Channel properties,
Plug-ins, etc.). For the focus, the following rule applies:
At each level (Sound and Group) there is always one object, and only one, in focus.
The focused object is highlighted in the Sound/Group List, and the background of its
leading letter and/or number has the color of the object itself.

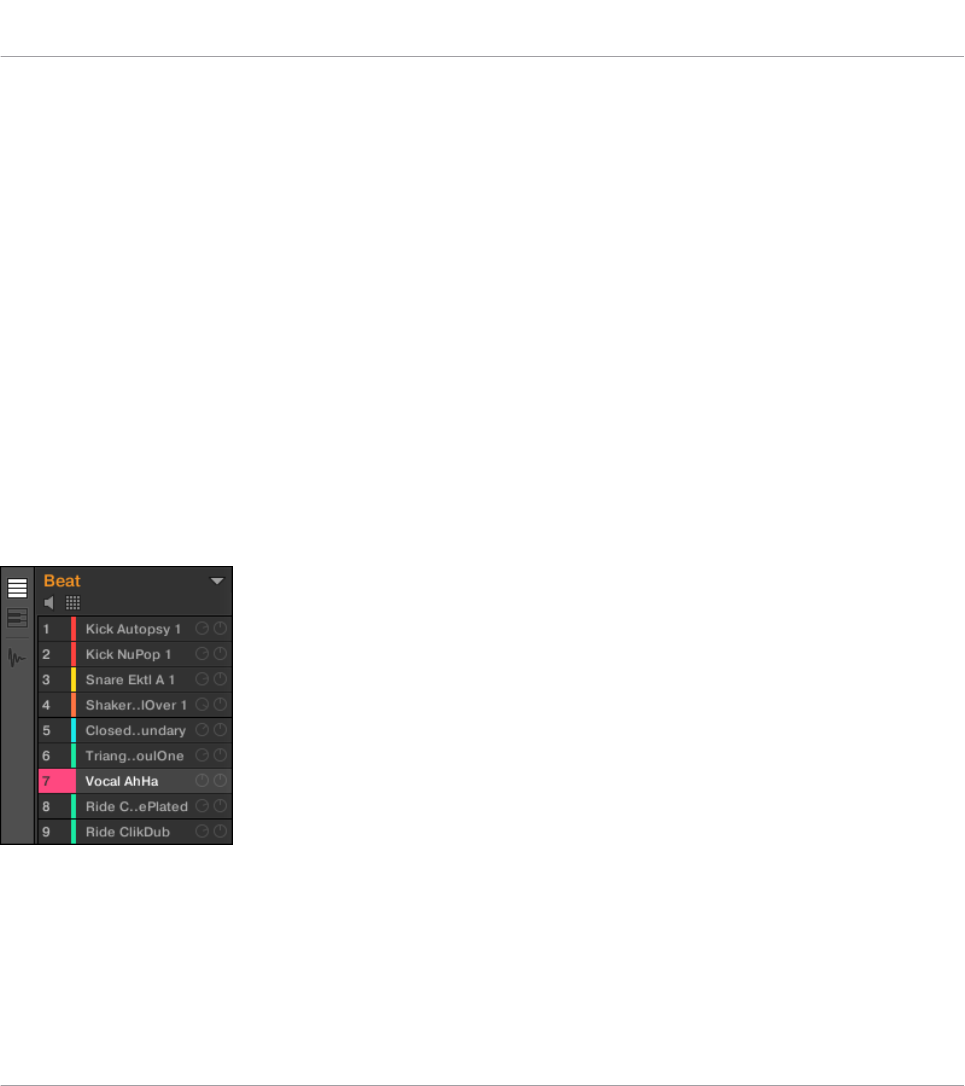

The Sound Vocal AhHa is focused (and selected).
▪ The selection, on the other hand, determines what will be affected by your actions (e.g.,
adjusting a parameter). For example, the focused Sound (i.e. the one you clicked in the
Sound List) is implicitly selected — nothing special here: This just means that the Sound
whose parameters are currently displayed will be indeed affected by the changes you do
