4.4.1 Saving a Group with its Samples
Sometimes it is useful to have the ability to save a Group with its Samples outside of the MA-
SCHINE Library. If you want to take a Group to another studio or if you want to backup or
share a custom drum kit with all the related files, this comes in handy.
To save a Group with its Samples:

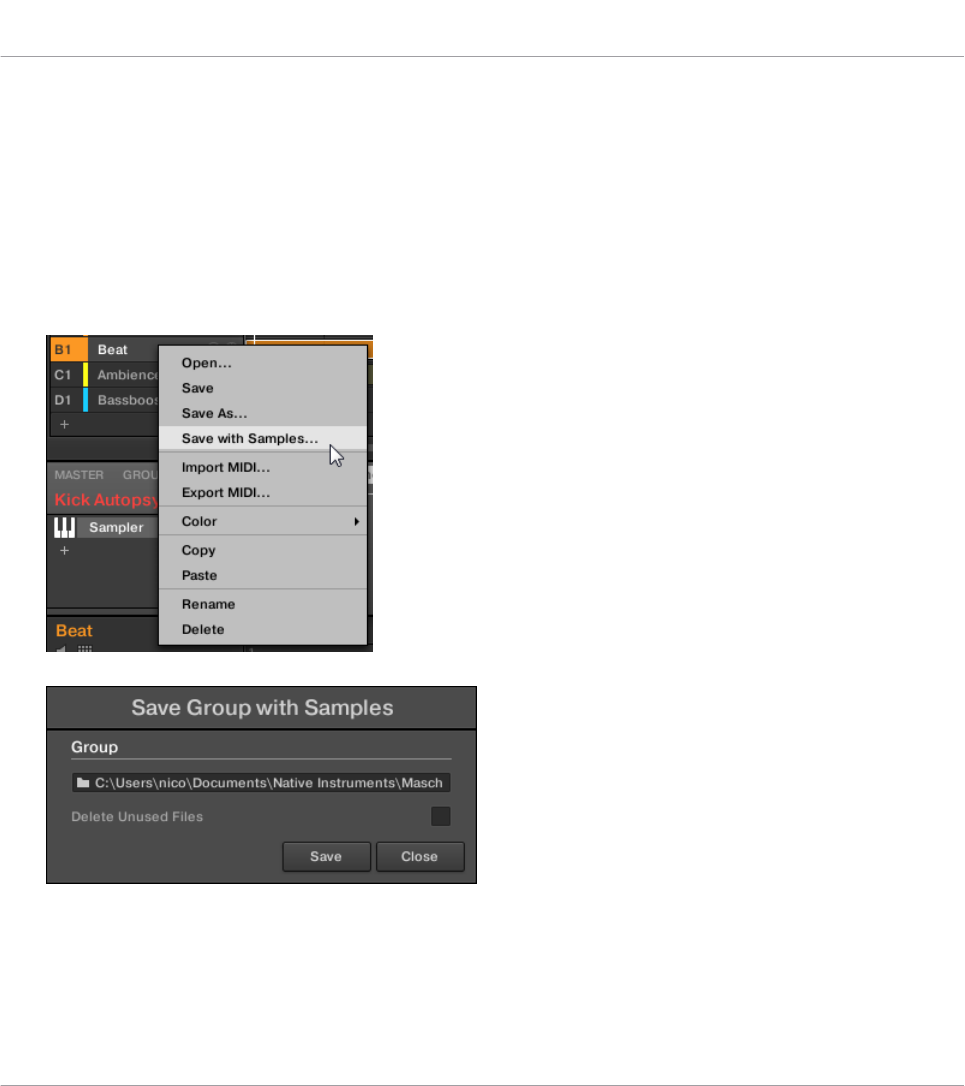

1. Right-click (on Mac OS X: [Ctrl]-click) the Group in the Group List left of the Arranger and
select Save with Samples… from the context menu:
You will be presented with the Save Group with Samples panel:
2. In this panel, adjust the settings (see table below) and click Save to confirm or Close to
cancel the operation.
Managing Sounds, Groups, and Your Project
Exporting MASCHINE Objects and Audio
MASCHINE STUDIO - Manual - 167
