4. If you want to bypass a Plug-in of a Sound, press Button 3 to select the SOUND tab, select

its parent Group as described in the previous step, and press SELECT + the pad of that

Sound (or simply hit its pad if pads are in Group mode).

5. Press Button 5/6 to select the desired Plug-in slot.

The name of the selected Plug-in appears in the field between the left and right arrows

under Button 5 and 6. If there are no Plug-ins in the channel this will read EMPTY.

6. Press SHIFT + Button 7 (BYPASS) above the right display to bypass the selected Plug-in

slot.

→

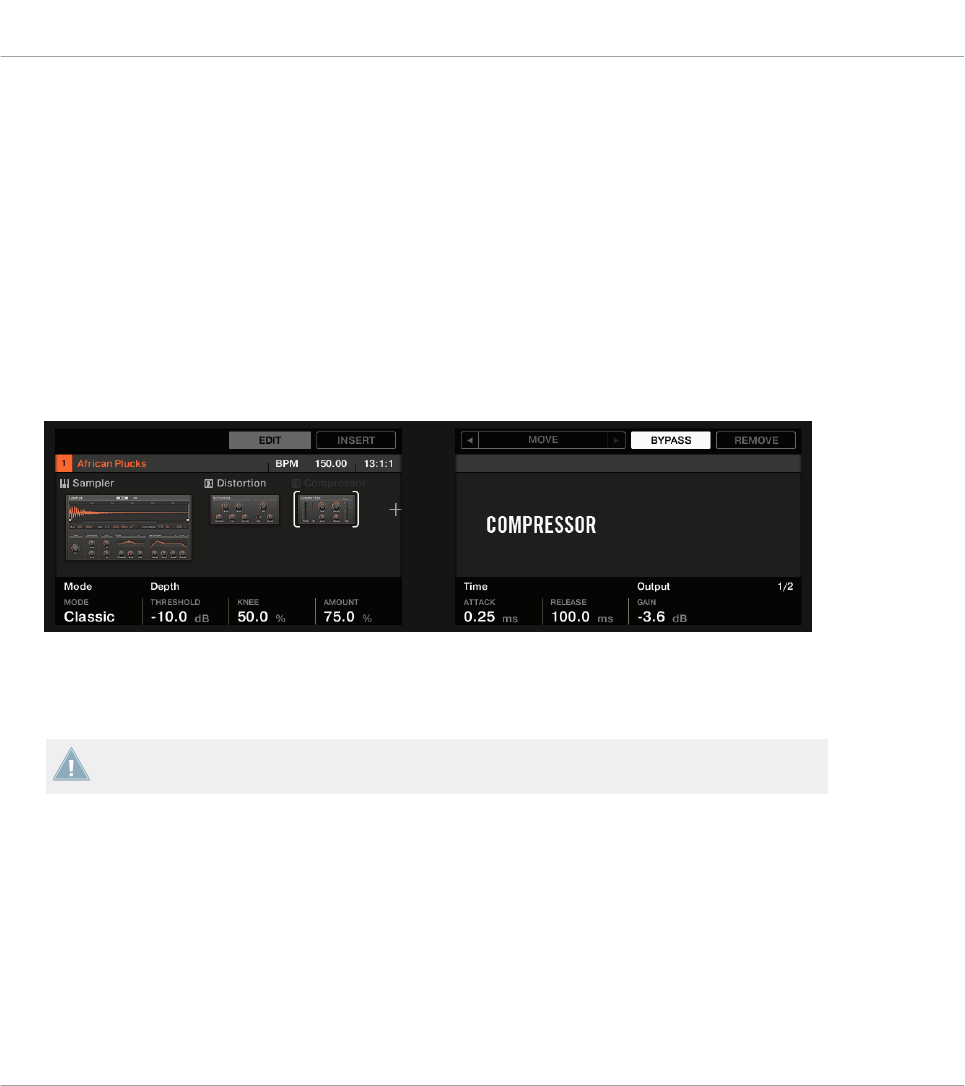

The Plug-in is bypassed and does not affect the sound anymore. In the left display the

Plug-in icon and name are grayed out. When you hold SHIFT, Button 7 is fully lit and the

BYPASS label on the right display is highlighted to indicate that this Plug-in slot is now by-

passed:

Use the same method to unmute the effect:

►

To unmute the effect, press SHIFT + the lit Button 7 (BYPASS).

In most cases the first Plug-in slot contains an Instrument Plug-in (e.g., a Sampler). Be

careful: bypassing the slot will mute the whole Sound!

6.1.6 Using Side-Chain

Some Plug-ins provide side-chaining. This allows you to control their influence on the audio via

another audio signal sent to their secondary, side-chain input. This extra routing feature is de-

scribed in details in section ↑11.1.3, Using the Side-Chain Input.
