7.2.5.1 Using Input Quantize on Your Controller

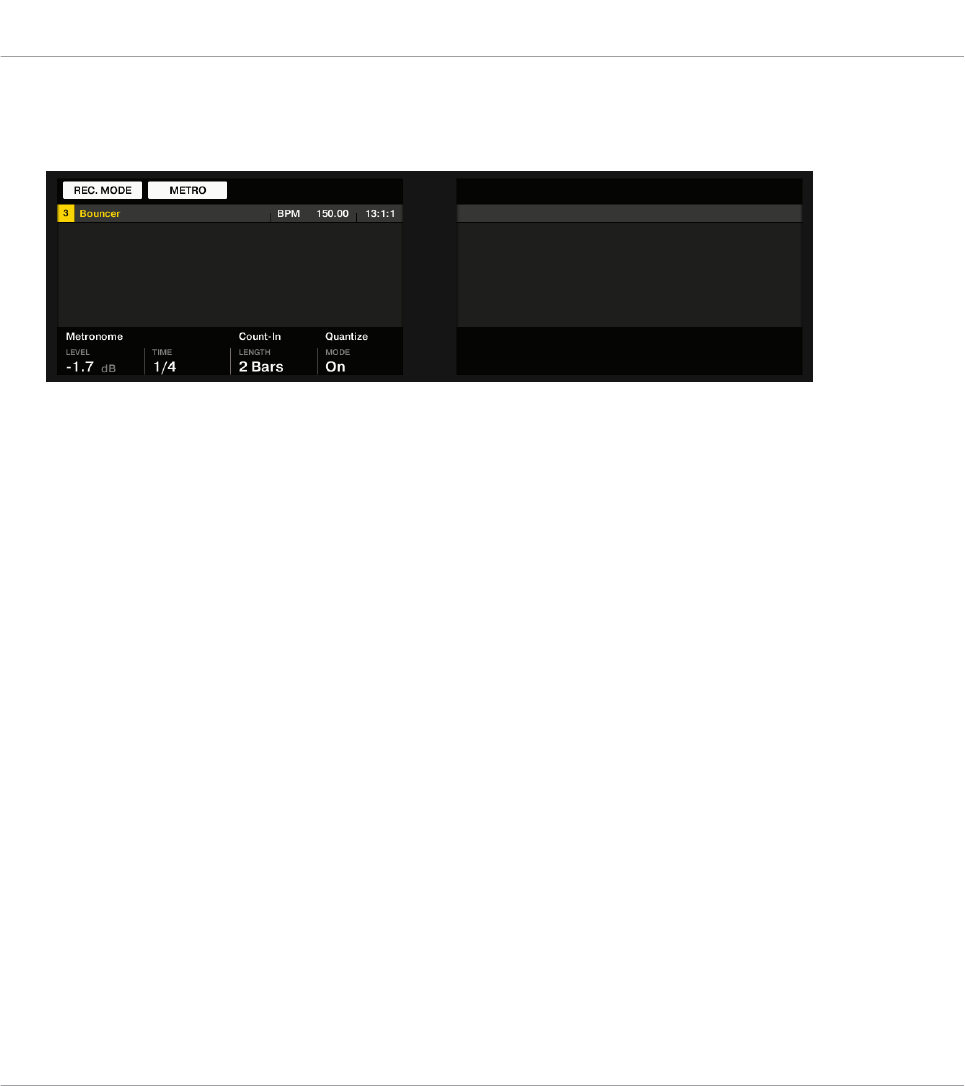

1. Press SHIFT + GRID to show the record settings.
2.
Turn Knob 4 (QUANTIZE MODE) to enable (ON) or disable (OFF) Input Quantization.
→
With Input Quantization enabled, as you are recording the pads your notes will be quan-
tized according to the step size (i.e. Step Grid resolution) selected. If you turn the Step
Grid off, no quantization will be applied. See section ↑7.1.7, Adjusting the Step Grid and
the Nudge Grid for more information on the Step Grid and the step size.
7.3 Recording Patterns with the Step Sequencer
If you are familiar with classic drum machines you may want to program your Pattern using the
step sequencer.
7.3.1 Step Mode Basics
On your controller the step sequencer is available via the Step mode. The Step mode allows you
to program the steps to be played by the focused Sound in the current Group.
7.3.1.1 Using Step Mode on Your MASCHINE STUDIO Controller
►
Press STEP MODE in the PERFORMANCE section (in the middle left part of your control-
ler) to switch your controller to Step mode.
On the MASCHINE STUDIO controller, Step mode is a submode of Event Edit mode available
on the PATTERN page of Arrange mode (see section ↑7.4.4, Editing Selected Events/Notes for
more information on the Event Edit mode). Hence, it is very similar to the Event Edit mode.
Working with Patterns
Recording Patterns in Real Time
MASCHINE STUDIO - Manual - 275
