Depending on the current pad mode (Group mode or Keyboard mode, see ↑5.1.1, The Pad
View), these tools will select events differently, as described in the following paragraphs.
Event Select Mode: Selecting Events (Pads in Group mode)
In Group mode (the default mode of the pads) each pad represents a specific Sound of the
focused Group.
When your pads are in Group mode the Event Select mode looks as follows:

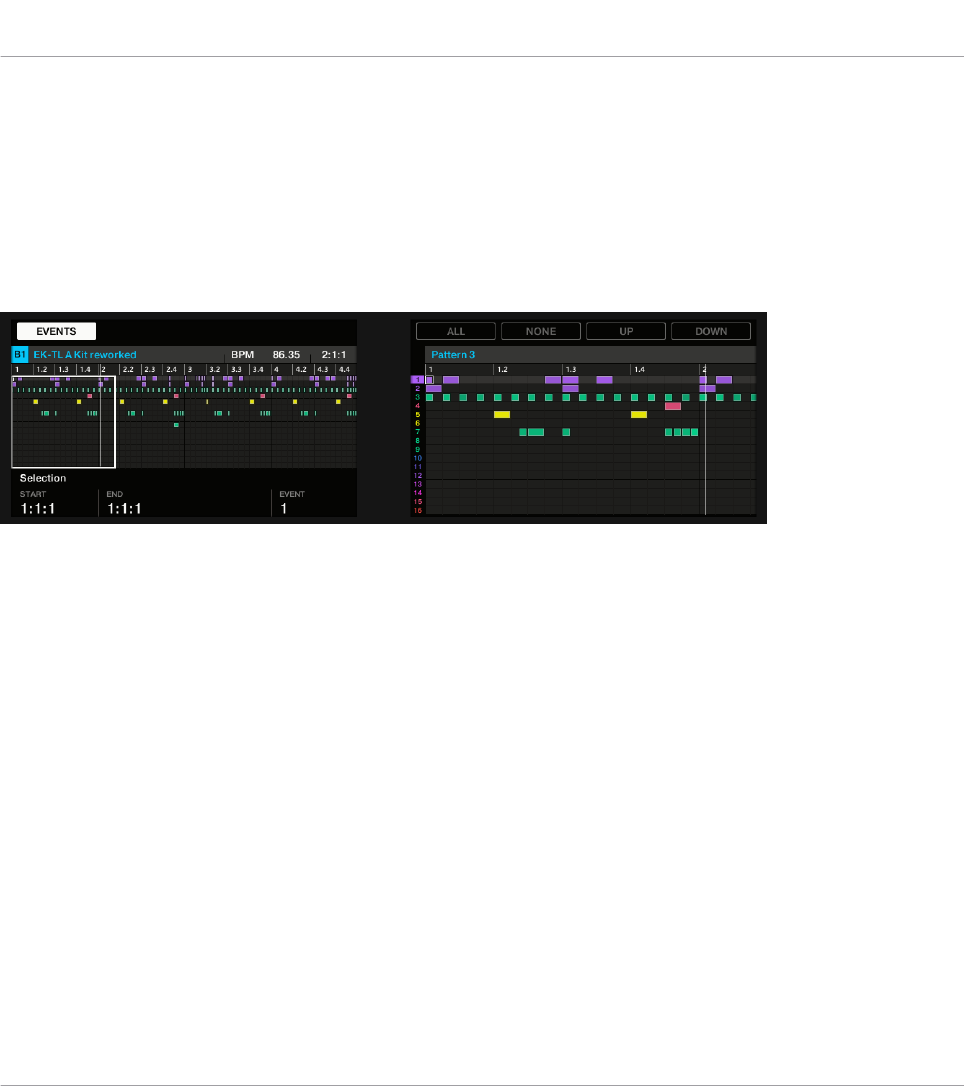

Selecting events on the controller with the pads in Group mode.
▪ The left display shows an overview of the events in your Pattern for all Sounds in the
Group.
▪ The right display shows a detailed view of a portion of your Pattern with events and their
velocities for the focused Sound.
You can adjust the right display as follows:
►
Turn Knob 5 and 6 to zoom in/out and scroll on the time axis (horizontal axis), respec-
tively.
You have following selection tools at your disposal:
Working with Patterns
Editing Events
MASCHINE STUDIO - Manual - 290
