On the right display, you will see all available Pattern slots in the selected Pattern bank repre-
sented as a square of 4x4 cells:
▪ The highlighted cell indicates the selected Pattern slot.
▪ Cells showing a name represent Pattern slots containing a Pattern.
▪ Empty cells represent empty Pattern slots.
This grid of cells corresponds to the pads on your controller:
▪ The fully lit pad indicates the selected Pattern slot.
▪ Dim lit pads indicate Pattern slots containing a Pattern.
▪ Unlit pads represent empty Pattern slots.
7.7.2 Selecting Patterns and Pattern Banks

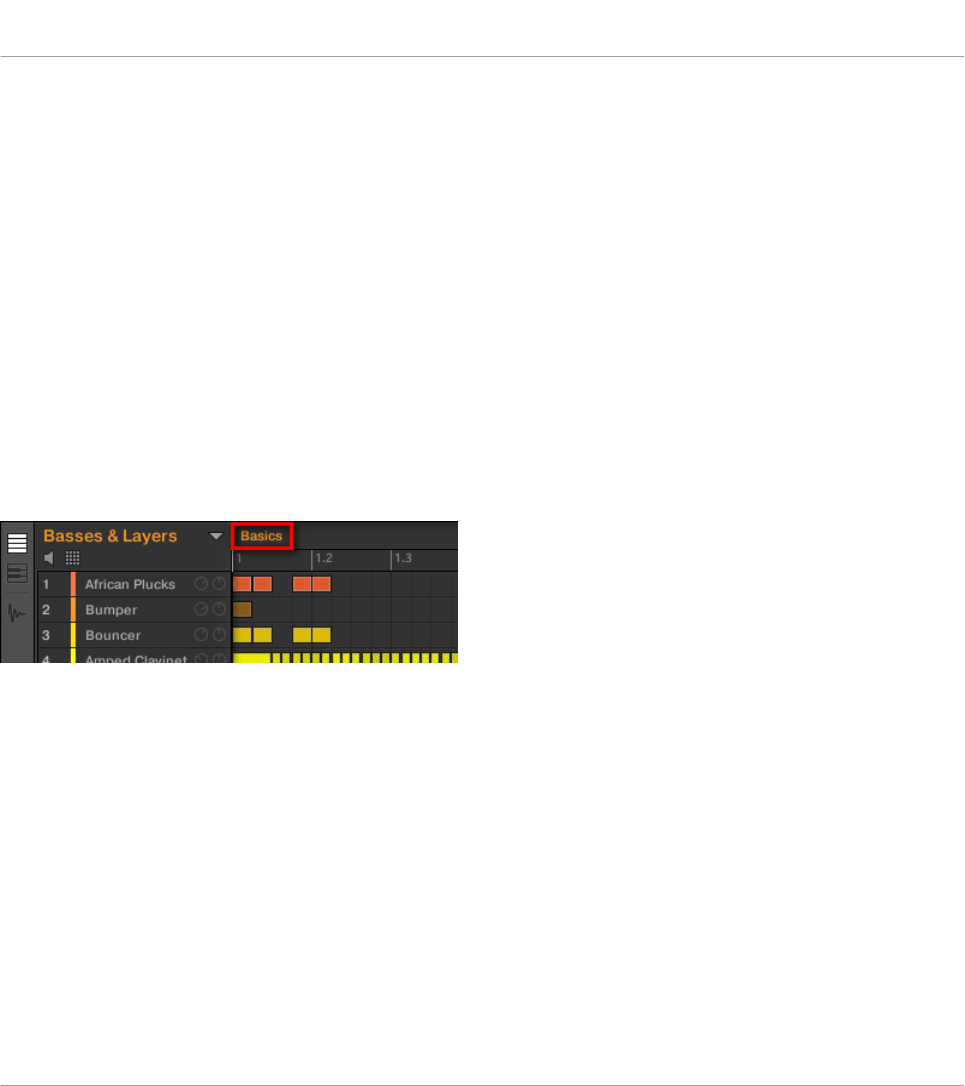

In the topmost row of the Pattern Editor, you can see the name of the Pattern selected:
The selected Pattern is named Basics.
To select a Pattern:
1. Open the Pattern Manager (see ↑7.7.1, The Pattern Manager and Pattern Mode).
Working with Patterns
Managing Patterns
MASCHINE STUDIO - Manual - 321
